Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2256786T Refrigerator Door (includes Item 6) (biscuit) Appelez-nous -
1 2256786B Refrigerator Door (includes Item 6) (black) Appelez-nous -
1 2256786S Refrigerator Door (includes Item 6) (stainless) Appelez-nous -
1 2256786L Refrigerator Door (includes Item 6) (stainless-vcm) Appelez-nous -
1 2256786W Refrigerator Door (includes Item 6) (white) Appelez-nous -
2 WP2256101 Door, Compartment   (Replaces: 2256101) In-Stock Immediately $ 85.16

3 W10267047 Screw   (Replaces: W10201588) Special Order $ 12.83

4 WPW10321304 Shelf Bin (3)   (Replaces: 2304235) In-Stock Immediately $ 44.73

5 W10152864 Endcap (nickel Alloy) Appelez-nous -
5 W10127813 Endcap (white) Special Order $ 78.50

5 W10210944A Endcap (biscuit)   (Replaces: W10127810) Appelez-nous -
5 W10127814 Endcap (black) Appelez-nous -
6 2159075 Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528) In-Stock Immediately $ 317.14

6 2159083 Door Gasket, Magnetic (black)   (Replaces: 2309529) Special Order $ 251.49

7 W10273556 Handle (nickel Alloy)   (Replaces: W10127811) Special Order $ 280.81

7 W10210942A Handle (black)   (Replaces: W10127809) Special Order $ 123.36

7 W10210944A Handle (biscuit)   (Replaces: W10127805) Appelez-nous -
7 W10210942A Handle (white)   (Replaces: W10127808) Special Order $ 123.36

8 WP2182181 Thimble, Top   (Replaces: 2308091) Special Order $ 7.76

9 WP2255411 Clip   (Replaces: 2255411) Special Order $ 34.81

10 WP2182179 Door Closer, Upper Cam   (Replaces: 2182178) In-Stock Immediately $ 6.39

11 WP489483 Screw   (Replaces: 489420) Special Order $ 10.87

12 WP2206629B Bracket, Door Stop (black)   (Replaces: 2206629B) Special Order $ 40.03

12 WP2206629B Bracket, Door Stop (chrome)   (Replaces: 2206629) Special Order $ 40.03

13 WP2213265 Nameplate   (Replaces: 2255121) In-Stock Immediately $ 88.74

14 WPW10288153 Screw   (Replaces: W10129563) In-Stock Immediately $ 8.69

15 WP2309941 Trivet, Shelf   (Replaces: 2309941) In-Stock Immediately $ 76.32

16 WP3400012 Screw   (Replaces: 3400012) Special Order $ 7.82

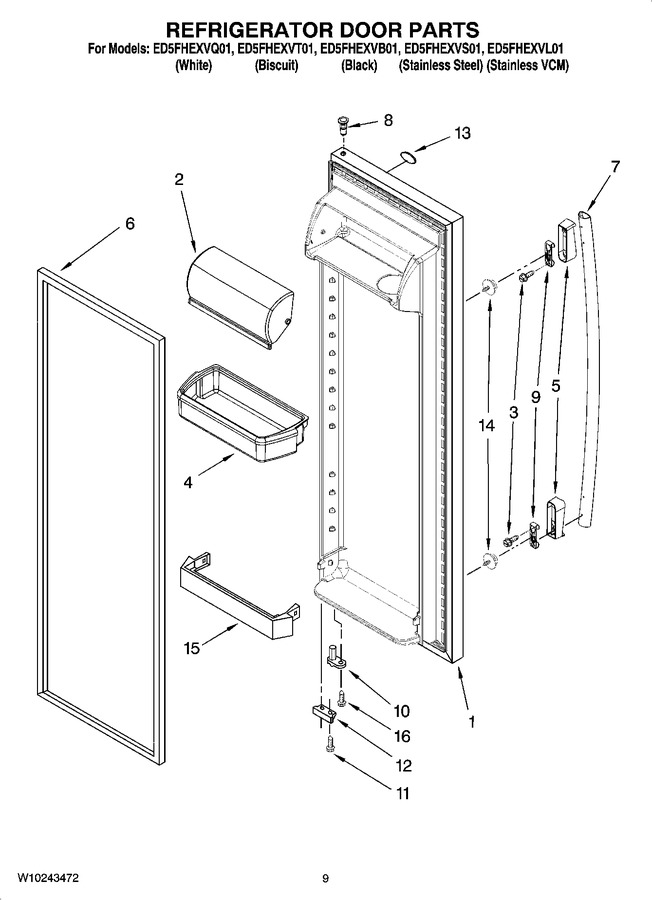

    View Diagram in Separate Window     Print Icon   Print Part List
