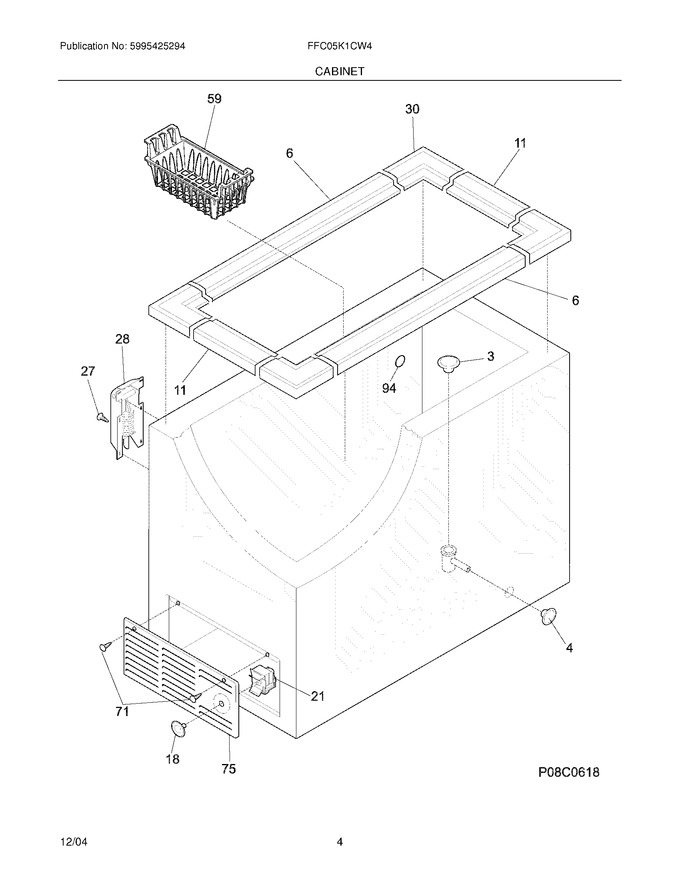

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 19.28
4	297013605		Plug,drain ,blue ,exterior				$ 8.66
6	216855700		Breaker,hinge Side				$ 32.24
11	216855706		Breaker-ends,white		Appelez-nous	-
18	216707200		Knob,temp Control				$ 49.00
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216848200		Basket,blue ,upper   (Replaces: 216848201)				$ 59.12
71	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
75	216782000		Panel-access,white		Appelez-nous	-
94	216140400		Lens,frost Indicator ,blue				$ 1.42
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 49.09
NI	216793807		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
