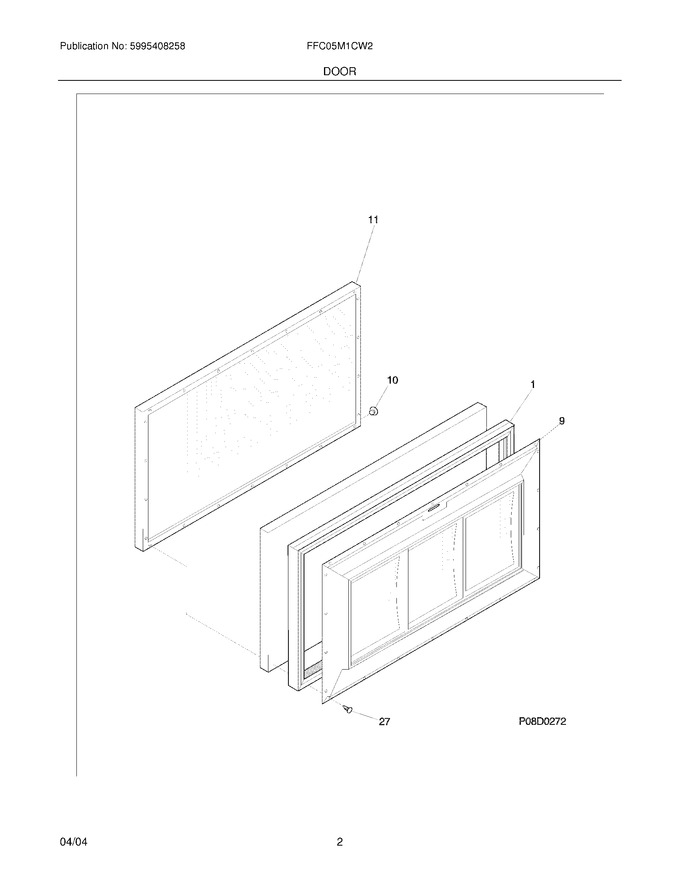

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480801 | Gasket-door, White |
|
$ 202.03 | |||||
| 9 | 216061502 | Panel-inner Lid, White |
|
$ 110.41 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216106014 | Panel-outer Lid,white |
|
$ 302.40 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 18.48 | |||||
| NI | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5303161215) |
|
Immediately | $ 12.05 |
