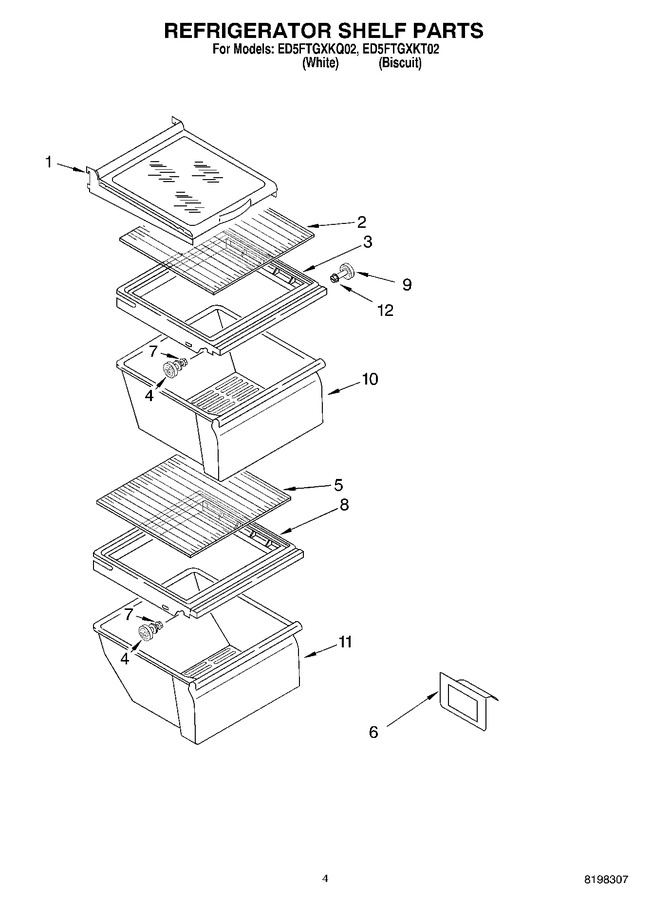

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2194281 | Shelf, Cantilever (2) |
|
- | |||||
| 2 | W10864399 | Glass, Cover (Replaces: 2174150) |
|
$ 220.98 | |||||
| 3 | W10508993 | Cover, Crisper (Replaces: 2209698) |
|
$ 291.29 | |||||
| 4 | W11223328 | Stud Assembly (use On Crisper Cover, As Shown, If Applicable) (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 5 | W10864399 | Glass, Cover (Replaces: 2179259) |
|
$ 220.98 | |||||
| 6 | 2179350 | Deflector |
|
$ 81.80 | |||||
| 7 | WP3-24004-109 | Screw (use On Crisper Cover, As Shown, If Applicable) (Replaces: 3400894) |
|
$ 8.05 | |||||
| 8 | 2217039 | Cover, Meat Pan |
|
- | |||||
| 9 | WP2196483 | Stud Assembly (if Applicable) (Replaces: 2196483) |
|
$ 10.35 | |||||
| 10 | WP2188661 | Crisper Pan (Replaces: 2196481) |
|
Immediately | $ 162.07 | ||||
| 11 | WP2188664 | Meat Pan (Replaces: 2196162) |
|
Immediately | $ 85.30 | ||||
| 12 | WP3400806 | Screw (if Applicable) (Replaces: 8281158) |
|
$ 7.71 |
