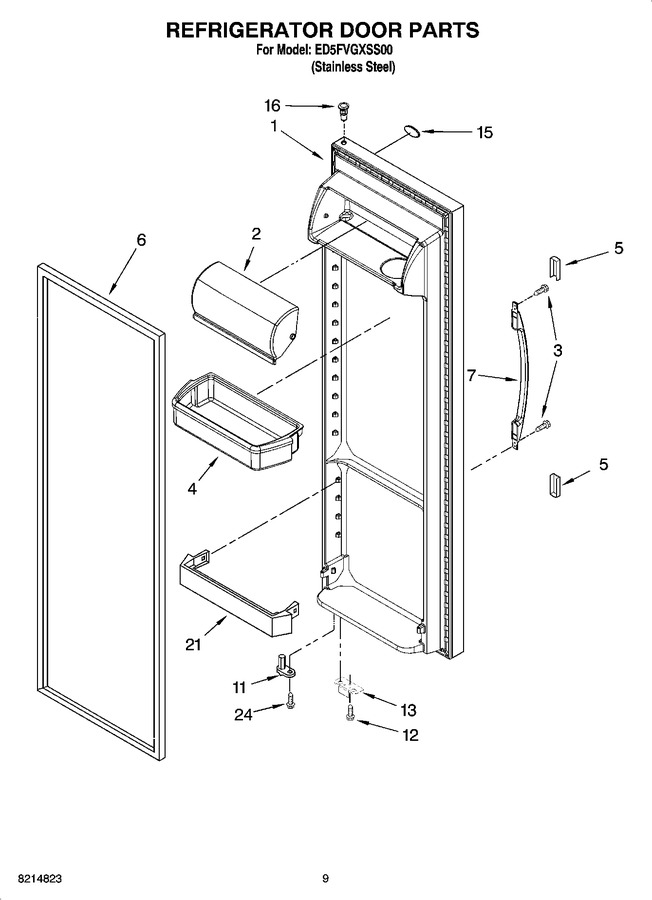

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206825S		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	WP2203828		Door Bin (3)   (Replaces: 2203828K)				$ 95.52
5	2193353B		Extension, Handle (black)				$ 5.85
6	2159083		Door Gasket, Magnetic (repair) (black)   (Replaces: 2221313)				$ 251.49
7	2186649B		Handle, Center (black)				$ 72.96
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
16	2308050		Thimble, Top		Appelez-nous	-
21	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
24	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
