Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 695007 Billboard, Console Appelez-nous -
2 386567 Bracket, Control Appelez-nous -
3 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.85

4 693987 Switch, Pushbutton Appelez-nous -
5 385798 Pushbutton (4) Appelez-nous -
6 WP965173 Screw, 8 X 3/8   (Replaces: 345304) In-Stock Immediately $ 10.72

7 54690 Plug, Button Appelez-nous -
8 358750 Lights, Indicator Appelez-nous -
9 301006 Lens, Amber (3) Appelez-nous -
10 358741 Lens, Yellow (1) Appelez-nous -
11 385800 Cap, End (r.h.) Appelez-nous -
12 WP488627 Screw, 8a X 1/2 (2)   (Replaces: 338156) Special Order $ 7.57

13 386370 Panel, Rear Billboard Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

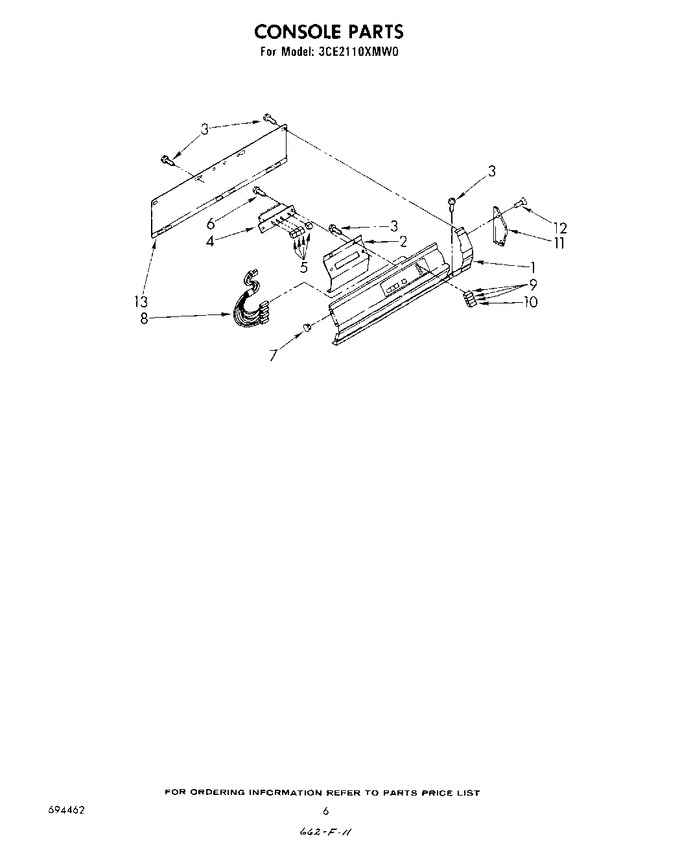

Diagram for 3CE2110XMW0
