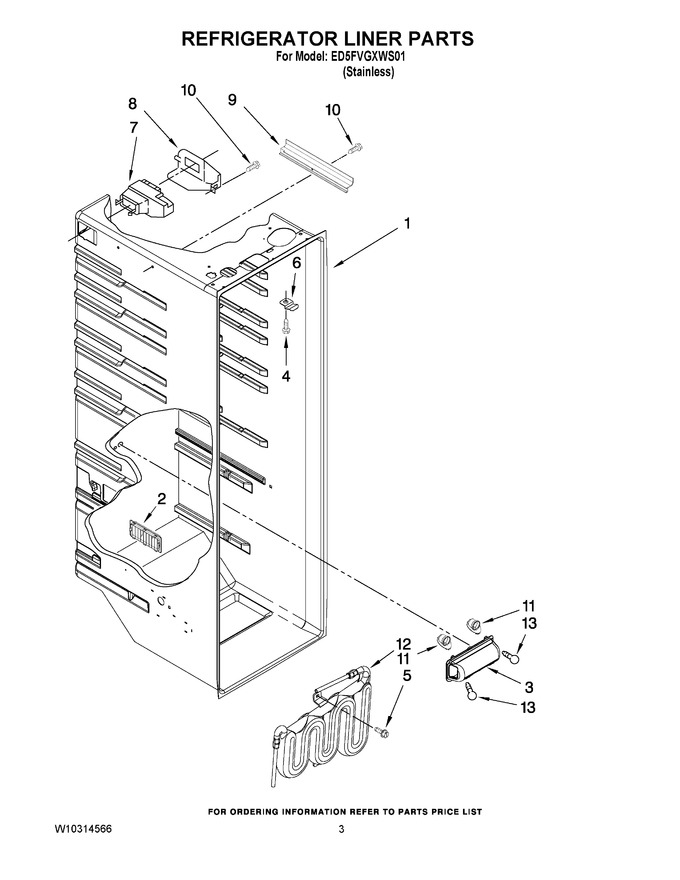

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	2257741		Louver		Appelez-nous	-
3	W11239891		Light Lens   (Replaces: W10166019)				$ 101.52
4	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
5	488280		Screw		Appelez-nous	-
6	2311612		Clip, Control Box (2)		Appelez-nous	-
7	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 104.77
8	2152019		Air Diffuser Cover				$ 90.33
9	W10252495		Cover, Conduit		Appelez-nous	-
10	W10759522		Screw   (Replaces: 486298)				$ 8.24
11	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
12	WPW10276792		Reservoir   (Replaces: W10204356)				$ 144.45
13	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
