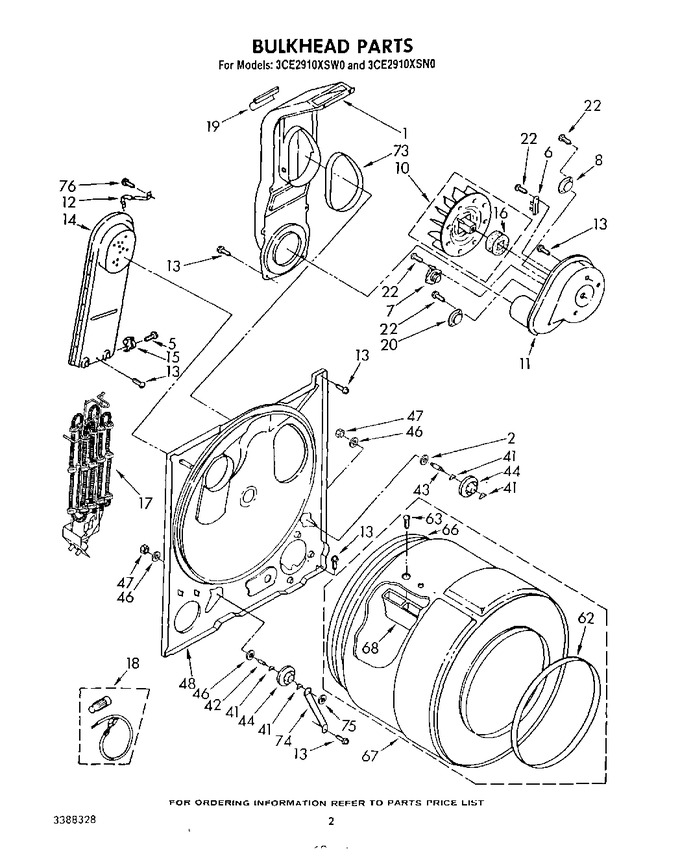

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute, Assembly (Replaces: 694283) |
|
$ 302.61 | |||||
| 2 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3390719 | Thermal Fuse (Replaces: 660877) |
|
Immediately | $ 31.57 | ||||
| 7 | AT022 | Thermostat, Operating 150of (65.6oc) 341146 (alt.) (Replaces: 660039) |
|
Immediately | $ 35.17 | ||||
| 8 | AT022 | Thermostat, Operating 155of (68oc) (341199) (alt.) (Replaces: 660073) |
|
Immediately | $ 35.17 | ||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 37.66 | ||||
| 11 | 348493 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | 279054 | Thermostat, High Limit 290of (143oc) (342764) (alt.) (Replaces: 660099) |
|
$ 145.55 | |||||
| 16 | 694630 | Seal, Blower |
|
- | |||||
| 17 | 694430 | Heater Element |
|
- | |||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 19 | 686770 | Protector Support |
|
- | |||||
| 20 | WP694674 | Thermostat 140of (60oc) (342812) (alt.) (Replaces: 660040) |
|
Immediately | $ 50.51 | ||||
| 22 | WP90767 | Screw, 8 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (2) (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer, Support (4) (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | 120377 | Nut, 3/8-16 (2) |
|
- | |||||
| 48 | 685775 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 125.58 | |||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 337449) |
|
Immediately | $ 62.78 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 695584) |
|
$ 336.22 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 146.98 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 74 | 348945 | Bracket, Support Shaft |
|
- | |||||
| 75 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 76 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.85 | ||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 51.44 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 17.91 | ||||||
| 261888 | New Avocado |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 | ||||||
| LIT3388328 | List, Service Parts |
|
- | ||||||
| LIT348772 | Instructions, Multi-venting |
|
- | ||||||
| LIT687458 | Instructions, Installation |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 261889 | New Avocado (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 261890 | Golden Harvest |
|
- |
