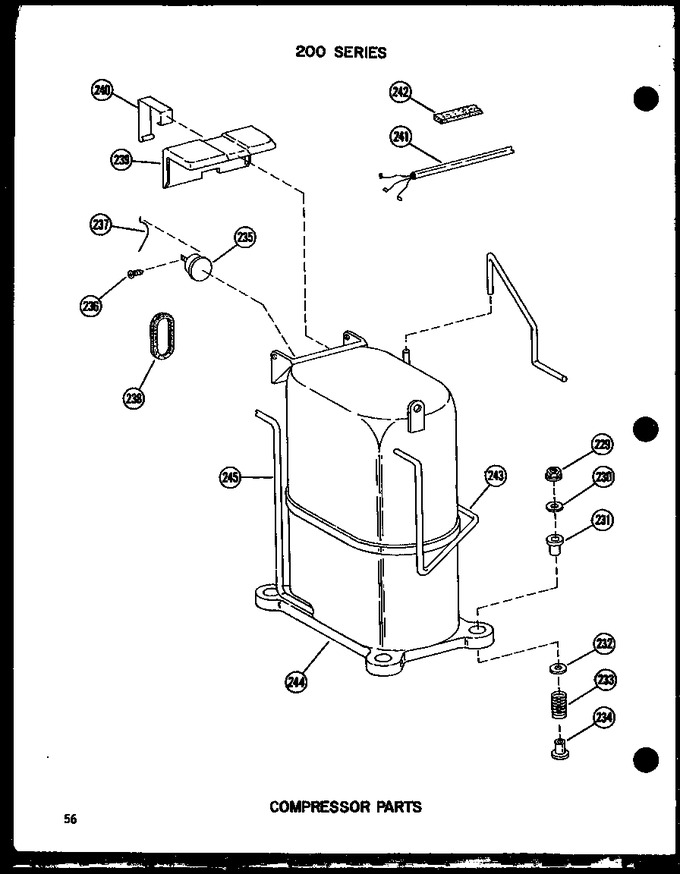

01 - Compressor Parts
02 - Condenser Parts
03 - Control Parts
04 - Evap & Action Air Parts
05 - Exterior Parts
06 - Factory Installed Mount
07 - Interior Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 229 | M0283610 | Nut |
|
- | |||||
| 229 | A3312201 | Nut |
|
- | |||||
| 230 | M0274008 | Washer,fibre |
|
- | |||||
| 231 | A4695101 | Grommet |
|
- | |||||
| 233 | A4694802 | Spring |
|
- | |||||
| 234 | A4695201 | Grommet |
|
- | |||||
| 235 | D4976644 | Overload |
|
- | |||||
| 236 | M0206116 | Screw |
|
- | |||||
| 237 | A4591501 | Spring |
|
- | |||||
| 238 | A4588001 | Seal |
|
- | |||||
| 239 | B4793701 | Cover |
|
- | |||||
| 240 | A4587801 | Bale Strap |
|
- | |||||
| 241 | C5275702 | Wiring Harness |
|
- | |||||
| 242 | A3030307 | Gasket |
|
- | |||||
| 243 | D5471601 | Tube-suction |
|
- | |||||
| 244 | D5403101 | Compressor, Aj5517e, 230/208 V |
|
- | |||||
| 245 | B1112901 | Tube-muffler To Dis |
|
- |
