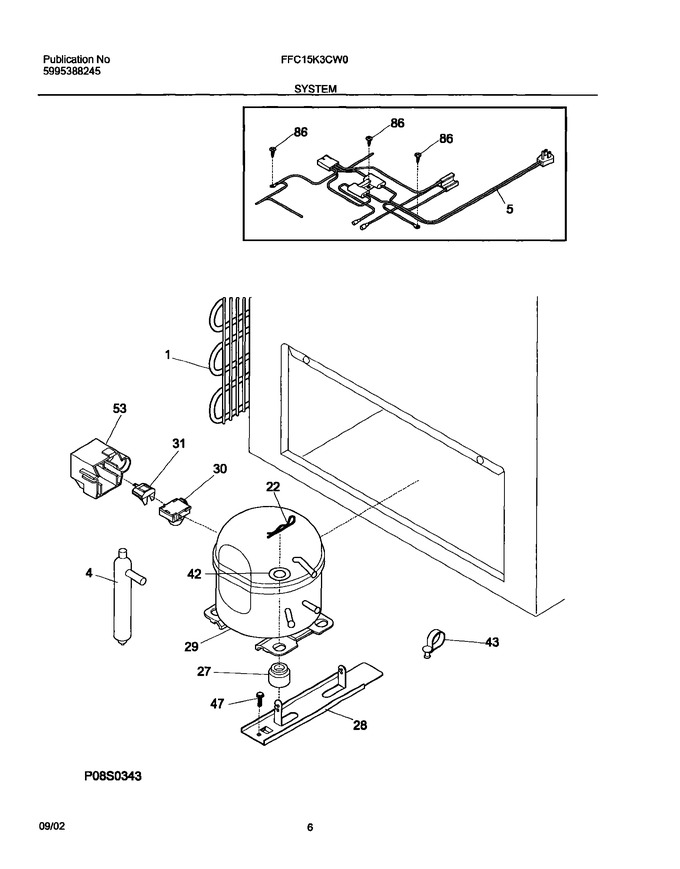

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925238		Condenser				$ 519.75
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 35.19
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
28	5303212615		Support, Compressor		Appelez-nous	-
30	216596800		Starter/,relay		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
43	5303212614		Clip,harness Mount				$ 3.20
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 14.46
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F29	216888100		Compressor,w/o Electricals		Appelez-nous	-
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 82.69
F5	216906000		Harness-main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
