SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

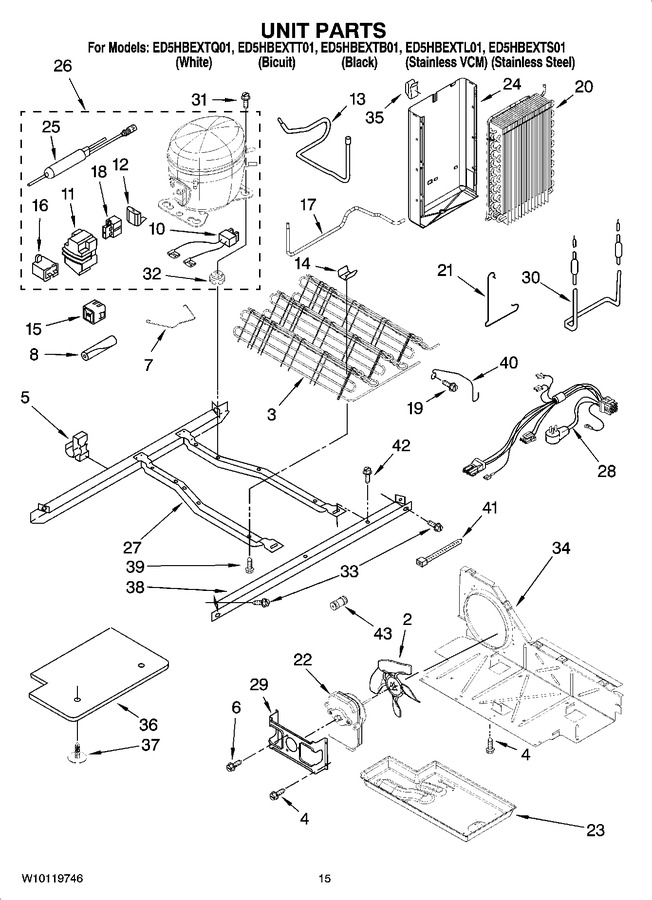

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: 2223953)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2255199		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
10	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
11	WP2162358		Cover, Terminal (service Only)   (Replaces: 4387731)				$ 90.75
12	WP2154697		Overload, (service Only)   (Replaces: 2154697)				$ 130.73
13	2205765		Tube Suction				$ 36.04
14	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 18.46
15	WP2319792		Start Device, Combination (start Relay Overload) For Production Compressor Only   (Replaces: 2255198)				$ 170.65
16	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
16	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
17	2261599		Tube, Condenser To Heat Loop				$ 232.07
18	2183454		Relay (service Only)		Appelez-nous	-
19	WP489478		Screw   (Replaces: 489478)				$ 7.75
20	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
21	2161324		Clamp		Appelez-nous	-
22	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
23	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
24	2217194		Heat Shield		Appelez-nous	-
25	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 52.57
25	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
26	W10309994		Compressor (includes Items 10, 11, 12, 16, 18, 25 & 32) (also Order 876765 Tube Kit)   (Replaces: 2255197)			Immediately	$ 612.90
27	2304904		Unit Mounting Frame   (Replaces: 2157397)		Appelez-nous	-
28	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: 2187783)				$ 293.67
29	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
30	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
31	876811		Screw   (Replaces: 489373)				$ 7.42
32	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
32	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
33	489340		Screw (5)		Appelez-nous	-
34	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
35	2155547		Clip, Heat Shield		Appelez-nous	-
36	2206281		Unit Cover, Bottom		Appelez-nous	-
37	489396		Clip				$ 10.72
38	2305374		Unit Mounting Rail				$ 80.64
39	W11544659		Screw   (Replaces: 8281232)				$ 13.67
40	2260517		Guard, Fan		Appelez-nous	-
41	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
42	WP489427		Screw   (Replaces: 489427)				$ 7.47
43	978029		Valve Access (5/8``)				$ 93.85
43	978030		Valve, Access (3/4``)				$ 130.71
43	876764		Valve, Access(3/16``)			Immediately	$ 91.35
43	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
43	WP4373559		Union   (Replaces: 2209709)				$ 77.35
43	978026		Valve, Access (5/16``)			Immediately	$ 128.09
43	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
43	978028		Valve, Access (1/2)		Appelez-nous	-
