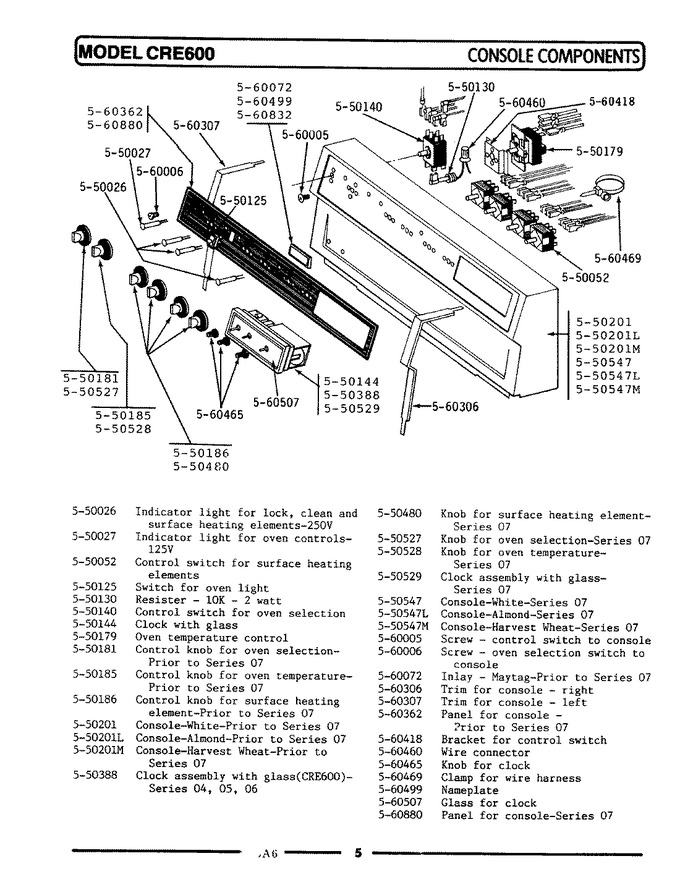

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	550026		Indicator Light-125 Volt		Appelez-nous	-
2	550027		Indicator Light-250 Volt		Appelez-nous	-
3	550052		Control Switch-heat Element		Appelez-nous	-
4	550125		Switch For Oven Light		Appelez-nous	-
5	550130		Resistor		Appelez-nous	-
6	550140		Control Switch-oven Selecto		Appelez-nous	-
7	550144		Clock Assembly		Appelez-nous	-
8	550179		Control Switch-oven Temp		Appelez-nous	-
9	550181		Knob For Oven Temperature		Appelez-nous	-
10	550185		Knob For Oven Selector		Appelez-nous	-
11	550186		Knob For Surface Element		Appelez-nous	-
12	550201		Console-white		Appelez-nous	-
13	550201L		Console-almond		Appelez-nous	-
14	550201M		Console-harvest Wheat		Appelez-nous	-
15	550388		Clock Assembly	04	Appelez-nous	-
16	550480		Control Knob	07	Appelez-nous	-
17	550527		Knob, Selector Switch	07	Appelez-nous	-
18	550528		Oven Control Knob	07	Appelez-nous	-
19	550529		Clock-automatic	07	Appelez-nous	-
20	550547		Panel, Backguard Assembly	07			$ 37.74
21	550547L		Backguard Panel	07	Appelez-nous	-
22	550547M		Panel, Backguard, Hvst. Wht	07	Appelez-nous	-
23	WPW10068250		Screw   (Replaces: 560005)				$ 3.84
24	WP488234		Screw   (Replaces: 560006)				$ 6.37
25	560072		Nameplate		Appelez-nous	-
26	560306		Trim For Console-right		Appelez-nous	-
27	560307		Trim For Console-left		Appelez-nous	-
28	560362		Inlay Panel For Console		Appelez-nous	-
29	560418		Support For Oven Control		Appelez-nous	-
30	560460		Wire Connector		Appelez-nous	-
31	560465		Knob For Clock		Appelez-nous	-
32	COMM PART		Clamp For Wire Harness   (Replaces: 560469)		Appelez-nous	-
33	560499		Nameplate		Appelez-nous	-
34	560507		Glass For Clock, Three Hole		Appelez-nous	-
35	560880		Inlay, Backguard Panel	07	Appelez-nous	-
