SELECT A DIAGRAM

01 - Control Panel


02 - Drawer Assembly


03 - Front View


04 - Latch Assembly


05 - Oven Assembly

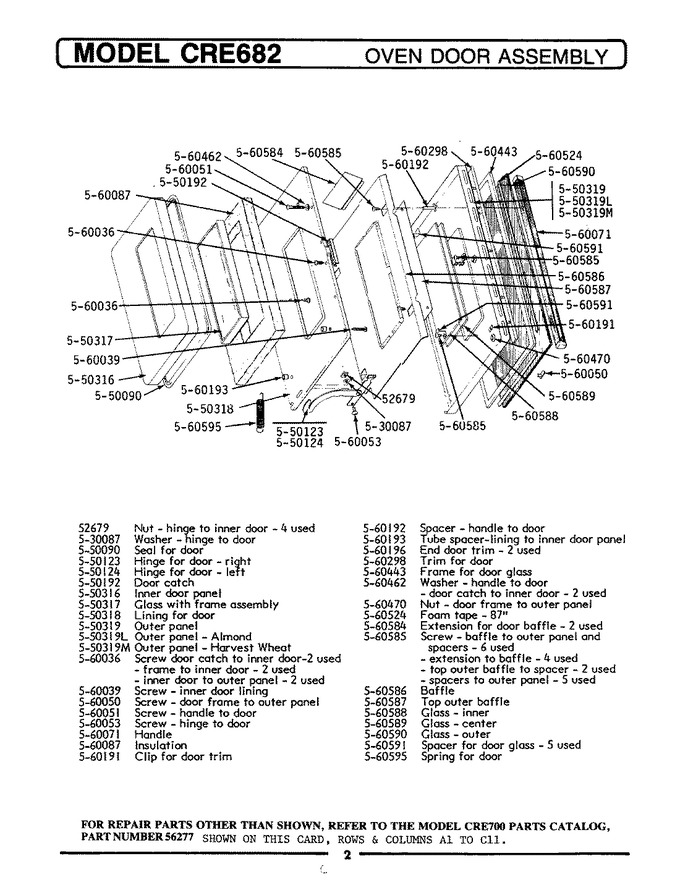

06 - Oven Door Assembly


07 - Rear View


08 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0282009		Hex. Nut----na   (Replaces: Y052679)				$ 12.66
2	530087		Lock Washer		Appelez-nous	-
3	550090		Seal For Door		Appelez-nous	-
4	550123		Hinge For Door-right		Appelez-nous	-
5	550124		Hinge For Door-left		Appelez-nous	-
6	550192		Door Catch		Appelez-nous	-
7	550316		Inner Door Panel		Appelez-nous	-
8	550317		Glass With Frame Assembly		Appelez-nous	-
9	550318		Inner Door Liner		Appelez-nous	-
10	550319		Panel-white		Appelez-nous	-
11	550319L		Panel-almond		Appelez-nous	-
12	550319M		Panel-harvest Wheat		Appelez-nous	-
13	WP7101P126-60		Screw   (Replaces: 560036)			Immediately	$ 7.52
14	560039		Screw-inner Door Lining		Appelez-nous	-
15	560050		Screw		Appelez-nous	-
16	560051		Screw		Appelez-nous	-
17	560053		Screw		Appelez-nous	-
18	560071		Handle For Door		Appelez-nous	-
19	560087		Insulation		Appelez-nous	-
20	560191		Clip		Appelez-nous	-
21	560192		Spacer		Appelez-nous	-
22	560193		Tubing Spacer		Appelez-nous	-
24	560298		Trim For Door		Appelez-nous	-
25	560443		Frame		Appelez-nous	-
26	560462		Washer		Appelez-nous	-
27	560470		Nut		Appelez-nous	-
28	560524		Foam Tape - 87 Inches		Appelez-nous	-
29	560584		Extension For Door Baffle		Appelez-nous	-
30	560585		Screw		Appelez-nous	-
31	560586		Baffle		Appelez-nous	-
32	560587		Top Outer Baffle		Appelez-nous	-
33	560588		Glass - Inner Door		Appelez-nous	-
34	560589		Glass For Oven Door-center		Appelez-nous	-
35	560590		Glass - Outer Door		Appelez-nous	-
36	560591		Spacer For Door Glass		Appelez-nous	-
37	560595		Spring For Oven Door		Appelez-nous	-
NI	560196		Trim-door Ends		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
