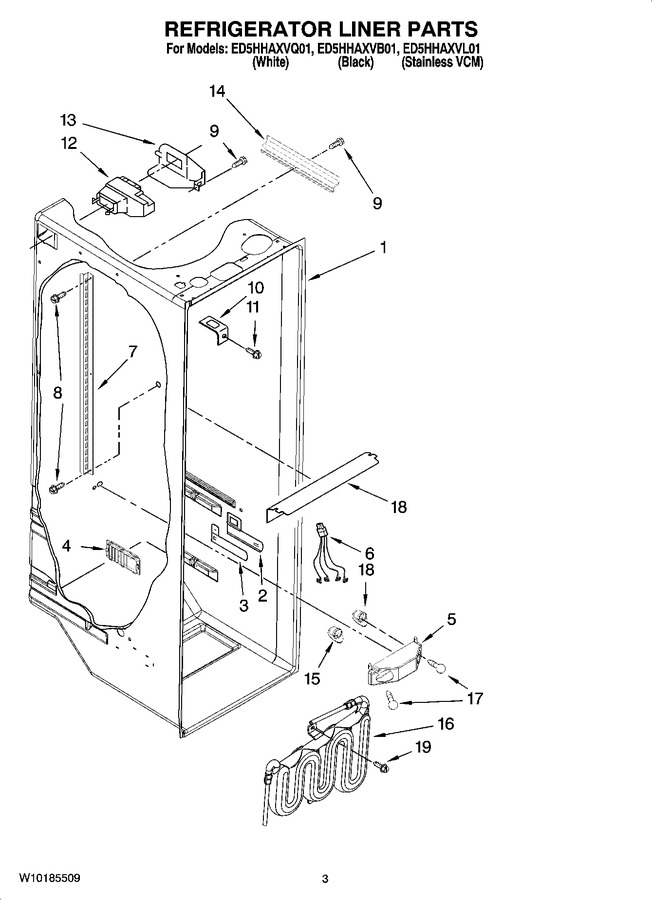

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Light				$ 62.54
6	2311637		Wire Harness, Dual Crisper				$ 140.23
7	2319866		Shelf Ladder				$ 22.16
8	WP489478		Screw   (Replaces: 489478)				$ 7.75
9	W10759522		Screw (2)   (Replaces: W10004810)				$ 7.75
10	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
11	WP488488		Screw   (Replaces: 489290)				$ 7.68
12	WPW10151374		Air Diffuser Assembly   (Replaces: W10151374)			Immediately	$ 99.78
13	2152019		Air Diffuser Cover				$ 86.03
14	2150331		Cover, Wiring				$ 24.40
15	4387478		Socket   (Replaces: 2162085)			Immediately	$ 110.16
16	WPW10276792		Reservoir   (Replaces: 2307107)				$ 137.57
17	8009		Light Bulb			Immediately	$ 18.67
18	2209769		Light Lens		Appelez-nous	-
19	488280		Screw		Appelez-nous	-
