SELECT A DIAGRAM

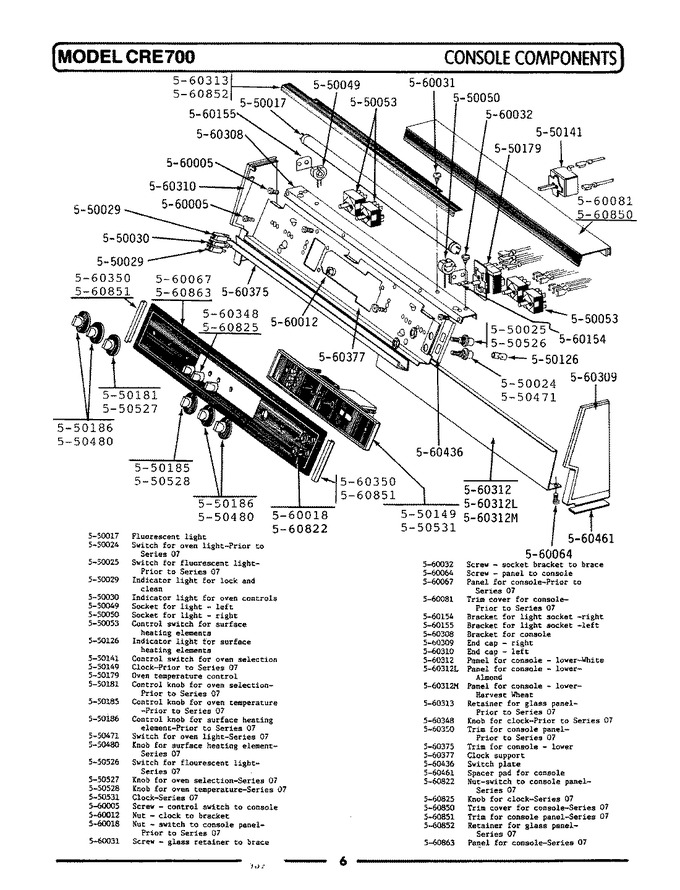

01 - Control Panel


02 - Door Assembly


03 - Drawer Assembly


04 - Front View


05 - Latch Assembly


06 - Oven Assembly


07 - Rear View


08 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP95292		Fluorescent Light   (Replaces: 550017)			Immediately	$ 127.51
2	550024		Switch For Oven Light		Appelez-nous	-
3	WP22002263		Switch For Fluorescent Ligh   (Replaces: 550025)			Immediately	$ 13.37
4	550029		Indicator Light		Appelez-nous	-
5	550030		Indicator Light		Appelez-nous	-
6	550049		Socket For Light-left		Appelez-nous	-
7	550050		Socket For Light-right		Appelez-nous	-
8	550053		Control Switch-heat Element		Appelez-nous	-
9	550126		Indicator Light-125 Volt		Appelez-nous	-
10	550141		Control Switch-oven Selecto		Appelez-nous	-
11	550149		Clock Assembly		Appelez-nous	-
12	550179		Control Switch-oven Temp		Appelez-nous	-
13	550181		Knob For Oven Temperature		Appelez-nous	-
14	550185		Knob For Oven Selector		Appelez-nous	-
15	550186		Knob For Surface Element		Appelez-nous	-
16	550471		Switch For Oven Light		Appelez-nous	-
17	550480		Control Knob	07	Appelez-nous	-
18	550526		Switch, Fluorescent Light	07	Appelez-nous	-
19	550527		Knob, Selector Switch	07	Appelez-nous	-
20	550528		Oven Control Knob	07	Appelez-nous	-
21	550531		Clock-automatic	07	Appelez-nous	-
22	WPW10068250		Screw   (Replaces: 560005)				$ 3.84
23	560012		Nut-clock To Support		Appelez-nous	-
24	560018		Nut-switch To Console		Appelez-nous	-
25	560031		Screw		Appelez-nous	-
26	WP355214		Screw   (Replaces: 560032)			Immediately	$ 7.92
27	560064		Screw		Appelez-nous	-
28	560067		Panel For Console		Appelez-nous	-
29	560081		Trim Cover For Console		Appelez-nous	-
30	560154		Bracket, Light Socket-right		Appelez-nous	-
31	560155		Bracket, Light Socket-left		Appelez-nous	-
32	560308		Bracket For Console		Appelez-nous	-
33	560309		End Cap-right		Appelez-nous	-
34	560310		End Cap-left		Appelez-nous	-
35	560312		Console Panel-white		Appelez-nous	-
36	560312L		Console Panel-almond		Appelez-nous	-
37	560312M		Console Panel-harvest Wheat		Appelez-nous	-
38	560313		Retainer For Glass Panel		Appelez-nous	-
39	560348		Knob For Clock		Appelez-nous	-
40	560350		Trim For Console Panel		Appelez-nous	-
41	560375		Trim For Console-lower		Appelez-nous	-
42	560377		Clock Support		Appelez-nous	-
43	560436		Switch Plate		Appelez-nous	-
44	560461		Spacer Pad For Console		Appelez-nous	-
45	560822		Nut, Switch	07	Appelez-nous	-
46	560825		Knob, Clock	07	Appelez-nous	-
47	560850		Trim Backguard, Top	07	Appelez-nous	-
48	560851		Trim, Backguard Glass	07	Appelez-nous	-
49	560852		Retainer, Glass	07	Appelez-nous	-
50	560863		Backguard, Glass	07	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
