SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

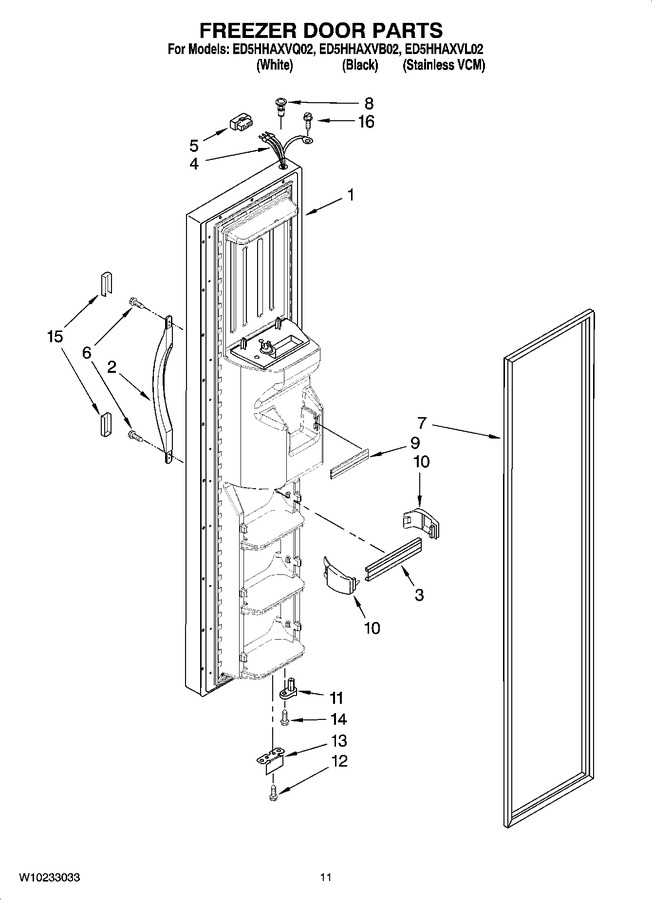

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165158		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10165459		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	W10165157		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649W		Handle (includes 15) (white)				$ 70.49
2	2186649B		Handle (includes 15) (black)				$ 72.96
3	2313199		Door Trim (3)   (Replaces: 2313199K)				$ 86.60
4	2198619		Dispenser Harness		Appelez-nous	-
5	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
6	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	WP2182181		Thimble-top (for White, Black, Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
10	2195917		Endcap (6)		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
15	WP2193353W		Trim-handle, Tail, Short (2) (white)   (Replaces: 2193353W)				$ 8.11
15	2193353B		Trim-handle, Tail, Short (2) (black)				$ 5.85
16	WP489128		Screw   (Replaces: 488500)				$ 10.88

    View Diagram in Separate Window       Print Part List
