Diagram # Part Number Description Series Availability Ships Price Add to Cart
330 C5935402 Frame Supt. Weld Appelez-nous -
331 B5107703 Support, Strap Appelez-nous -
332 C5935302 Weldment, Frame Appelez-nous -
333 B5128806 Weldment, Sliding Frame, L.h. Appelez-nous -
334 D5481205 Curtain, Sliding Frame, 1 Each Appelez-nous -
335 B1124805 Backer Strip Appelez-nous -
335 B1120501 Backer Strip, Curtain To Slidi Appelez-nous -
336 B5128805 Weldment, Sliding Frame, R.h. Appelez-nous -
337 A3030302 Gasket Appelez-nous -
338 C5872102 Weldment, Angle Support, L.h. Appelez-nous -
339 C5872101 Weldment, Angle Support, R.h. Appelez-nous -
340 B5127401 Clip Appelez-nous -
341 A4065501 Spacer K Appelez-nous -
342 A4622202 Clamp Appelez-nous -
343 D5505202 Seal, Cabinet Appelez-nous -
344 A4660601 Gasket, Sash Seal Strip Appelez-nous -
345 M0236004 Screw Appelez-nous -
346 M0282019 Nut-keps Appelez-nous -
347 M0200003 Screw Adjusting Appelez-nous -
348 M0211047 Screw Appelez-nous -
349 M0206557 Screw Appelez-nous -
350 M0212062 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

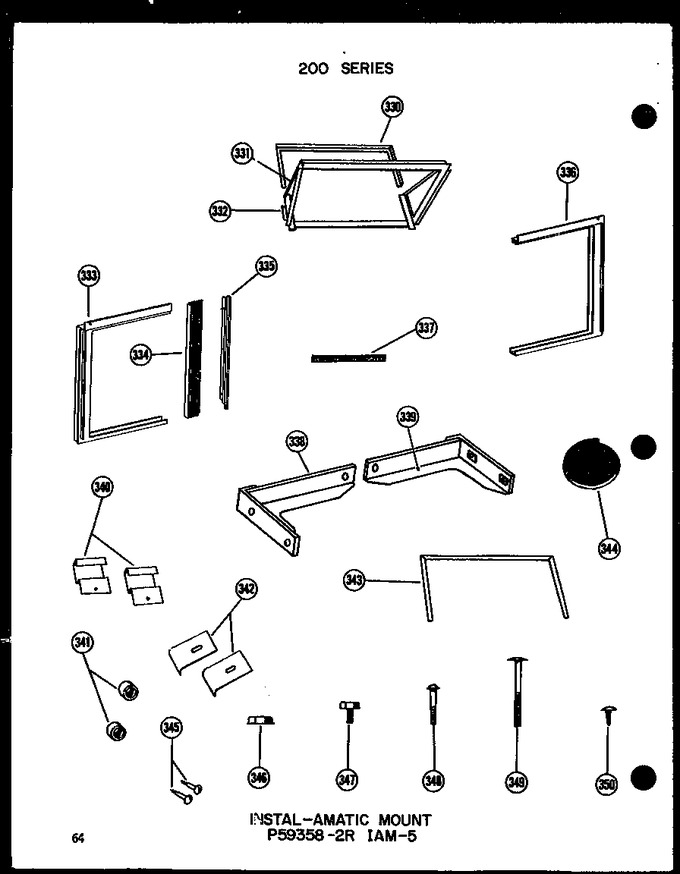

Diagram for 218-3J-1 (BOM: P5465555R)
