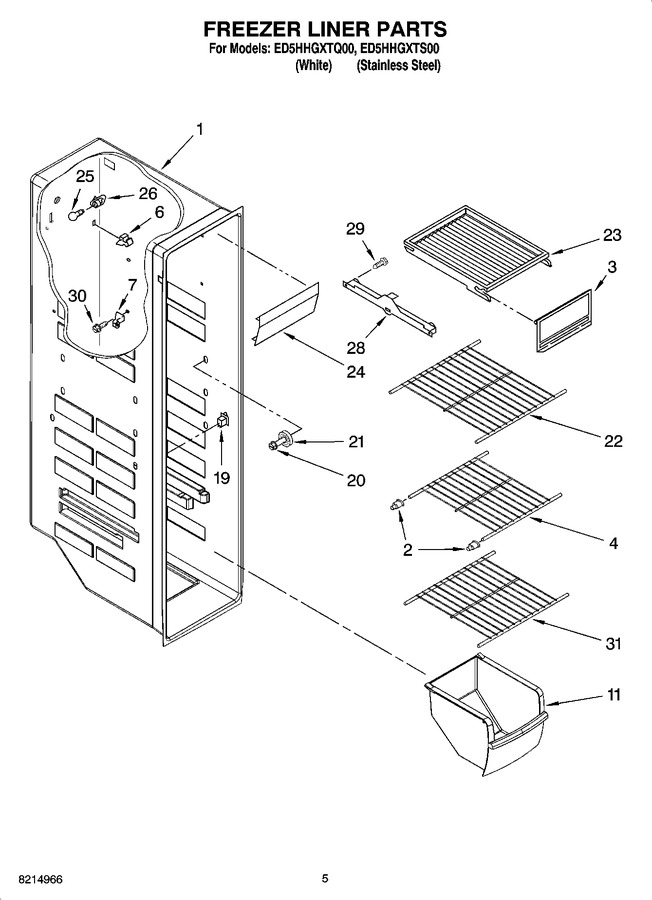

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WPW10130299		Cup, Shelf Mounting (2)   (Replaces: 2163762)			Immediately	$ 14.00
3	WP2171713		Door, Ice Compartment   (Replaces: 2171713)				$ 87.27
4	WPW10318948		Shelf, Wire   (Replaces: 2309597)				$ 147.84
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
11	W11577967		Freezer Bin   (Replaces: 2309757)				$ 91.71
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP3400806		Screw (4)   (Replaces: 8281158)				$ 7.71
21	WP2196483		Stud Assembly (4)   (Replaces: 2196483)				$ 10.35
22	WPW10318947		Shelf, Wire   (Replaces: 2309596)				$ 87.44
23	2171714		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Light Lens				$ 94.68
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw (4)   (Replaces: 489100)		Appelez-nous	-
30	W10142289		Screw   (Replaces: 3400893)				$ 9.15
31	2309522		Shelf, Wire		Appelez-nous	-
