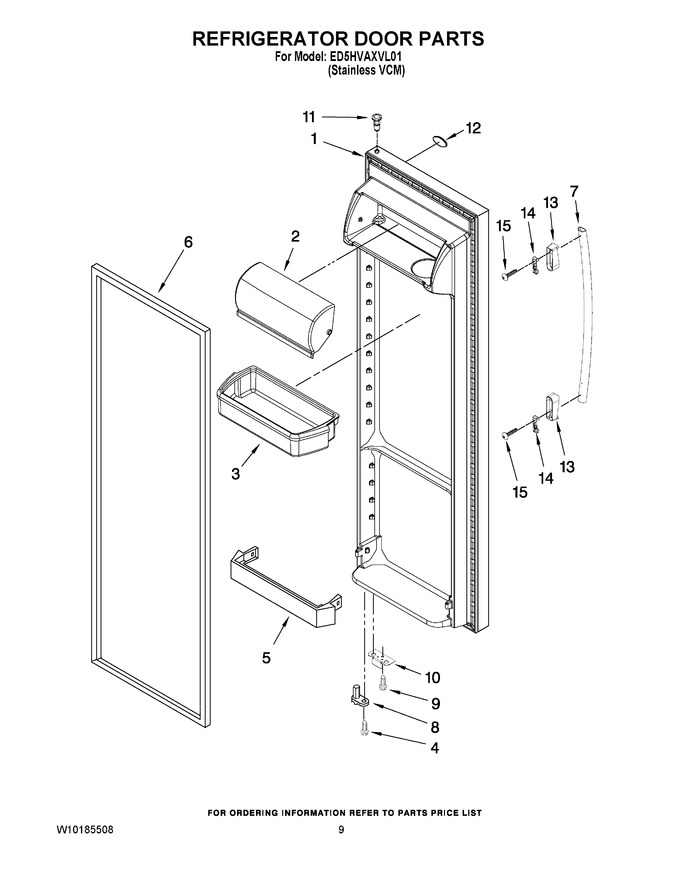

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326326LG		Refrigerator Door (includes Item No.6) (stainless Vcm)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2203828		Shelf Bin (3)   (Replaces: 2203828K)				$ 100.30
4	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
5	WP2156022		Trivet, Shelf   (Replaces: 2156022K)			Immediately	$ 72.80
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	W10273555		Handle, Extr (black)   (Replaces: W10127768)				$ 197.28
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
9	WP489483		Screw   (Replaces: 489420)				$ 11.41
10	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
13	W10152862		Handle, Endcap (black)		Appelez-nous	-
14	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 36.55
15	WP8533988		Screw, Clip   (Replaces: W10155511)			Immediately	$ 8.78
