SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts

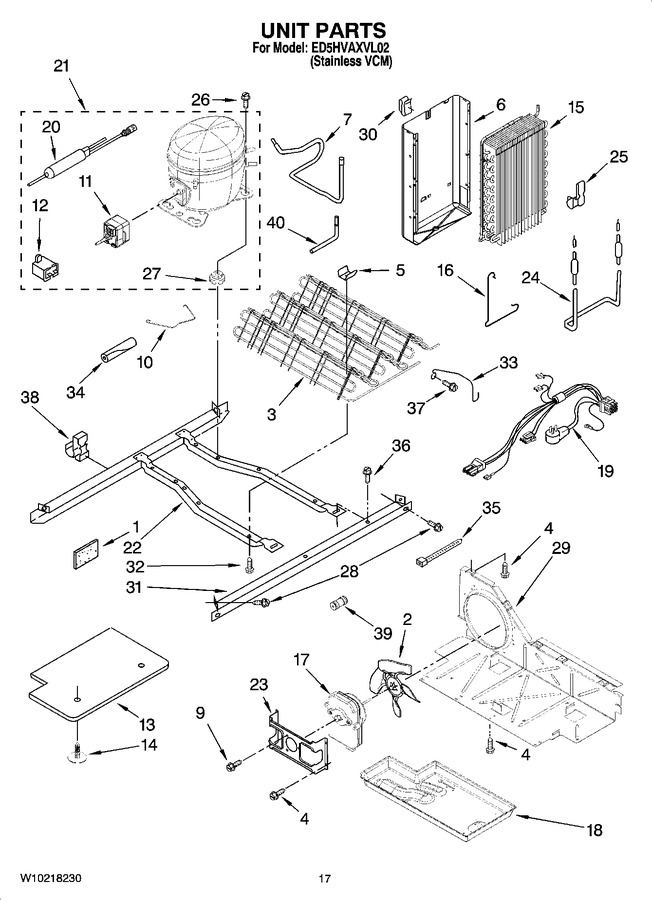

11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound   (Replaces: 2169104)			Immediately	$ 14.07
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: W10196260)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	2217194		Heat Shield And Drain Pan		Appelez-nous	-
7	W10210786		Tube, Suction		Appelez-nous	-
9	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
10	W11661170		Clip, Retaining   (Replaces: W10174384)			Immediately	$ 11.30
11	WPW10189190		Start-device, Combination (start Relay And Overload)   (Replaces: W10189190)			Immediately	$ 131.29
12	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
13	2304899		Unit Cover, Bottom		Appelez-nous	-
14	489396		Clip				$ 10.72
15	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
16	2161324		Clip		Appelez-nous	-
17	WP2188874		Motor, Fan   (Replaces: 2188874)			Immediately	$ 113.96
18	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
19	WPW10309395		Harness, Unit   (Replaces: 2187783)				$ 293.67
20	WPW10143759		Drier-uv (production)   (Replaces: W10177049)			Immediately	$ 30.78
20	WPW10143759		Drier, Uv (service)   (Replaces: 2317845)			Immediately	$ 30.78
21	W10233961		Compressor (includes Items 11, 12, 20, & 27) (also Order 876765 Tube Kit)   (Replaces: W10183575)				$ 612.76
22	2304904		Unit Mounting Frame		Appelez-nous	-
23	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
24	WP2323198		Heater, Defrost   (Replaces: 2323198)			Immediately	$ 90.70
25	W11623163		Clip, Heater   (Replaces: 2304287)		Appelez-nous	-
26	876811		Screw   (Replaces: 489373)				$ 7.42
27	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
27	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
28	489340		Screw		Appelez-nous	-
29	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
30	2155547		Clip, Heat		Appelez-nous	-
31	2305374		Unit Mounting Rail				$ 80.64
32	W11544659		Screw   (Replaces: 8281232)				$ 13.67
33	2260517		Guard, Fan		Appelez-nous	-
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
35	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
36	WP489427		Screw   (Replaces: 489427)				$ 7.47
37	WP489478		Screw   (Replaces: 489478)				$ 7.75
38	2208280		Clip, Wire & Tube		Appelez-nous	-
39	WPW10334458		Union   (Replaces: 2320322)				$ 21.59
40	W10274306		Tube, Process   (Replaces: W10171238)				$ 13.71
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
