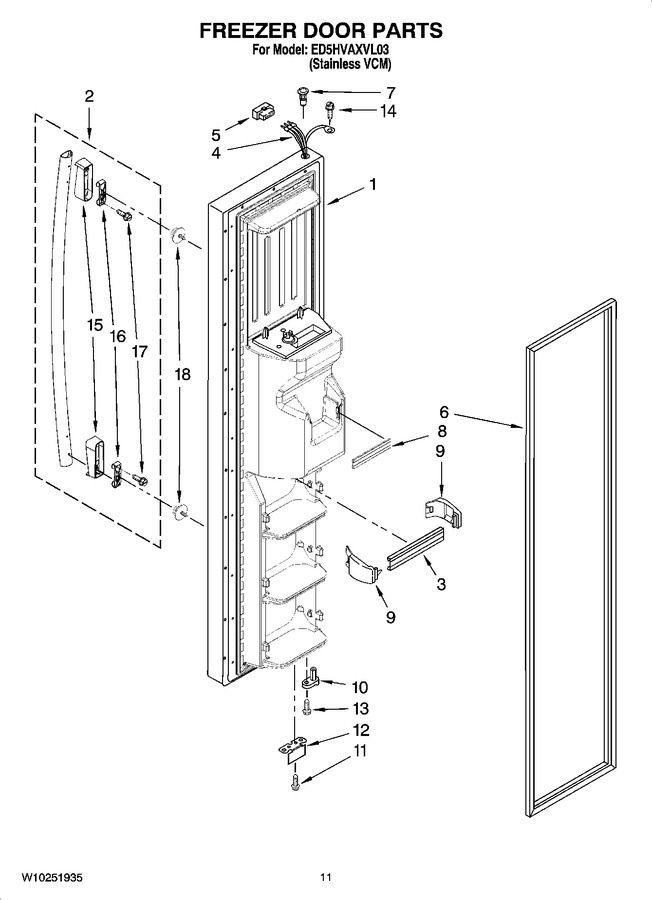

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10165299		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
2	W10273555		Handle, Assy (black)   (Replaces: W10172031)				$ 187.89
3	2313199		Door Trim (3)   (Replaces: 2313199K)				$ 86.60
4	2198619		Dispenser Harness		Appelez-nous	-
5	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
6	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
7	WP2182181		Thimble-top (for White, Black, Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
8	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
9	2195917		Endcap (6)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
14	WP489128		Screw   (Replaces: 488500)				$ 10.88
15	W10171987		Handle, Endcap (black)		Appelez-nous	-
16	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
17	WP8533988		Screw, Clip   (Replaces: W10155511)			Immediately	$ 7.95
18	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
