SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

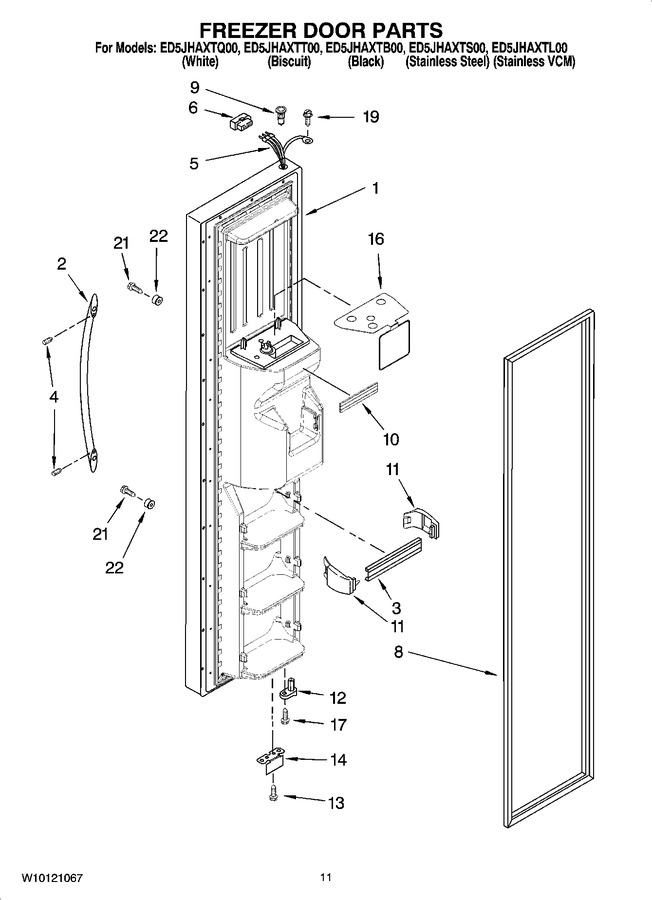

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326390W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2326390T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2326390B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2326390S		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2326390LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
2	2254600S		Handle (stainless Steel)				$ 106.71
2	WP2254600B		Handle (includes 4) (black)   (Replaces: 2319729B)				$ 219.21
2	2319729T		Handle (includes 4) (biscuit)		Appelez-nous	-
2	WP2254600W		Handle (includes 4) (white)   (Replaces: 2319729W)				$ 246.90
3	2313199		Door Trim (3)   (Replaces: 2313199K)				$ 90.93
4	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
5	W10683539		Dispenser Harness   (Replaces: 2187725)				$ 38.36
6	WP2154473		Connector   (Replaces: 2154473)				$ 24.83
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 325.70
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 332.49
9	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
9	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 8.15
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 24.27
11	2195917		Endcap (6)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	2304895		Safety Barrier		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
19	WP489128		Screw   (Replaces: 488500)				$ 11.40
21	WP488163		Screw   (Replaces: 488208)				$ 7.92
22	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51

    View Diagram in Separate Window       Print Part List
