SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

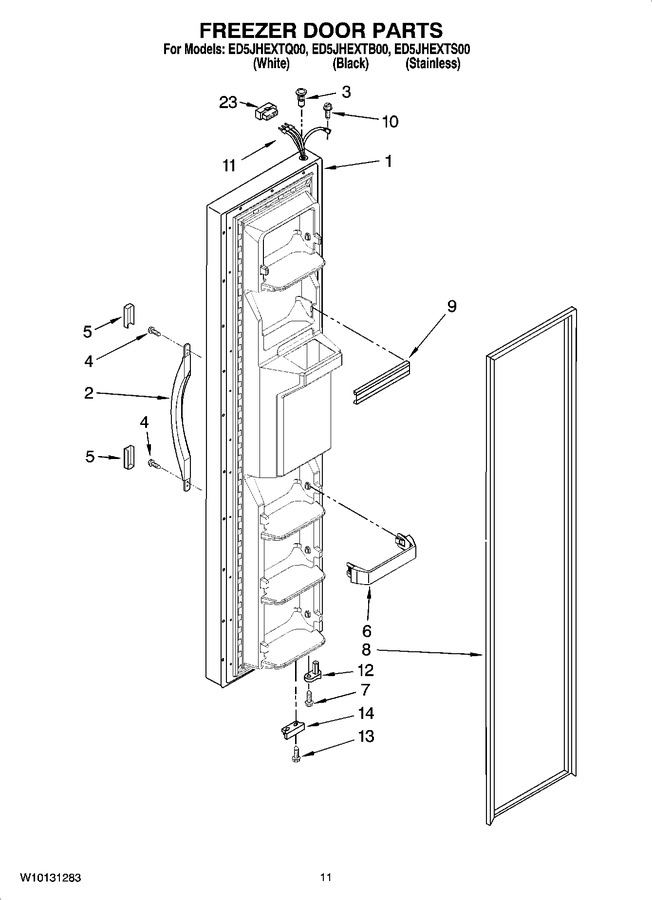

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2327187W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2327187B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327187S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2186649B		Handle (black)				$ 72.96
2	2186649W		Handle (white)				$ 70.49
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	2193353B		Trim, Handle (black)				$ 5.85
5	WP2193353W		Trim, Handle (white)   (Replaces: 2193353W)				$ 8.11
6	WP2309718		Trivet (4)   (Replaces: 2309718)				$ 58.56
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2309533)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309532)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2311641		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65

    View Diagram in Separate Window       Print Part List
