SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

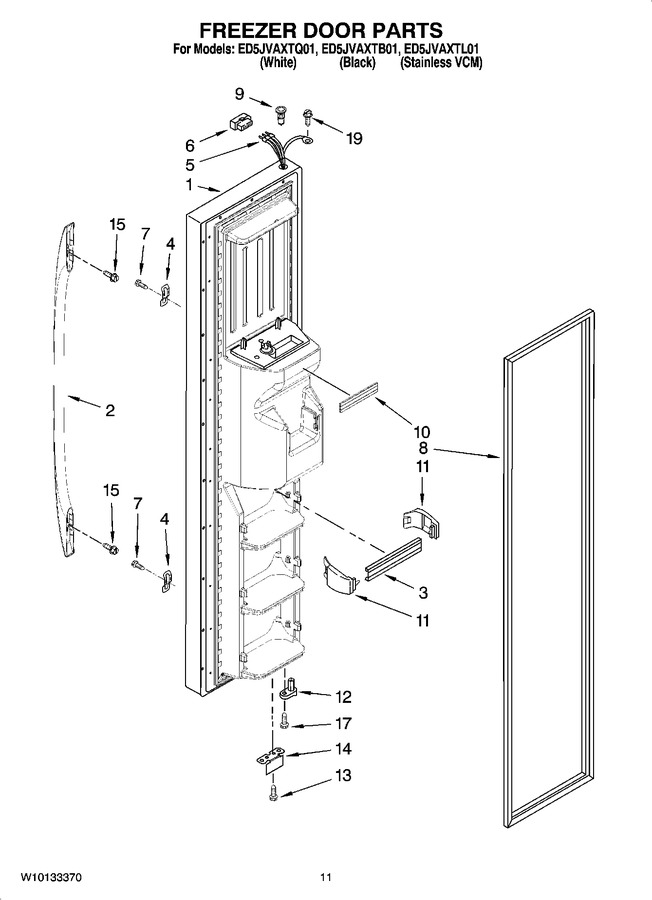

1	2327941B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2327941LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	2327941W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2313345W		Handle (includes 15) (white)		Appelez-nous	-
2	W10187086		Handle (includes 15) (black)   (Replaces: 2313345B)				$ 377.97
2	2254600S		Handle (includes 15) (stainless)				$ 106.71
3	2313199		Door Trim (3)   (Replaces: 2313199K)				$ 86.60
4	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
5	2198619		Dispenser Harness		Appelez-nous	-
6	1128252		Connector		Appelez-nous	-
7	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
8	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
9	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	2195917		Endcap (6)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
15	8533920		Screw				$ 5.27
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
19	WP489128		Screw   (Replaces: 488500)				$ 10.88

    View Diagram in Separate Window       Print Part List
