SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

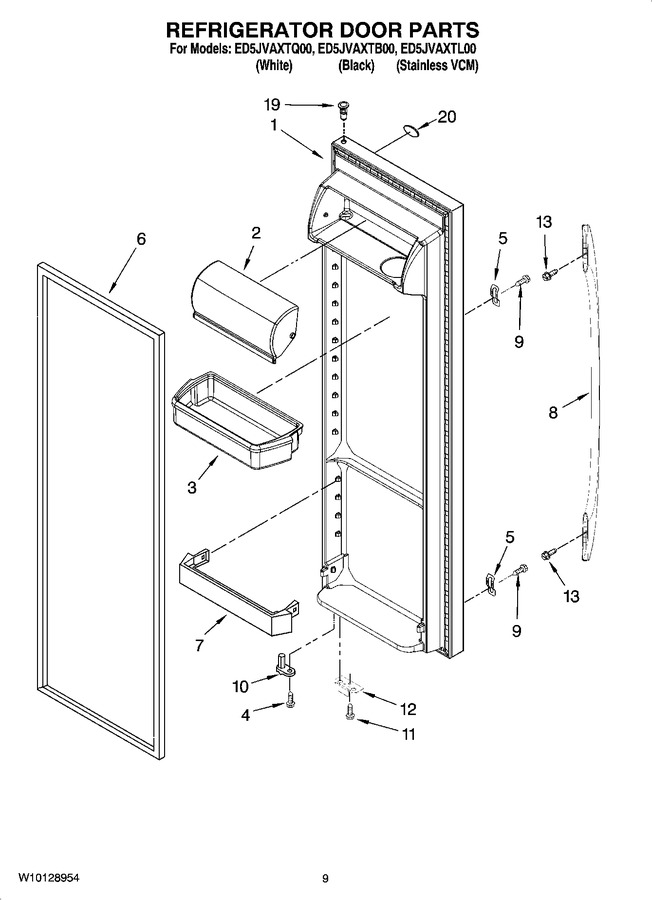

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307095W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2307095B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	2307095LG		Refrigerator Door (includes Item 6) (stainless Vcm)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10321304		Shelf Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
6	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
7	WP2156022		Shelf Bin   (Replaces: 2156022)			Immediately	$ 72.80
8	W10187086		Handle (includes 13) (black)   (Replaces: 2313345B)				$ 377.97
8	2254600S		Handle (includes 13) (stainless)				$ 106.71
8	2313345W		Handle (includes 13) (white)		Appelez-nous	-
9	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
13	8533920		Screw				$ 5.27
19	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
20	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
