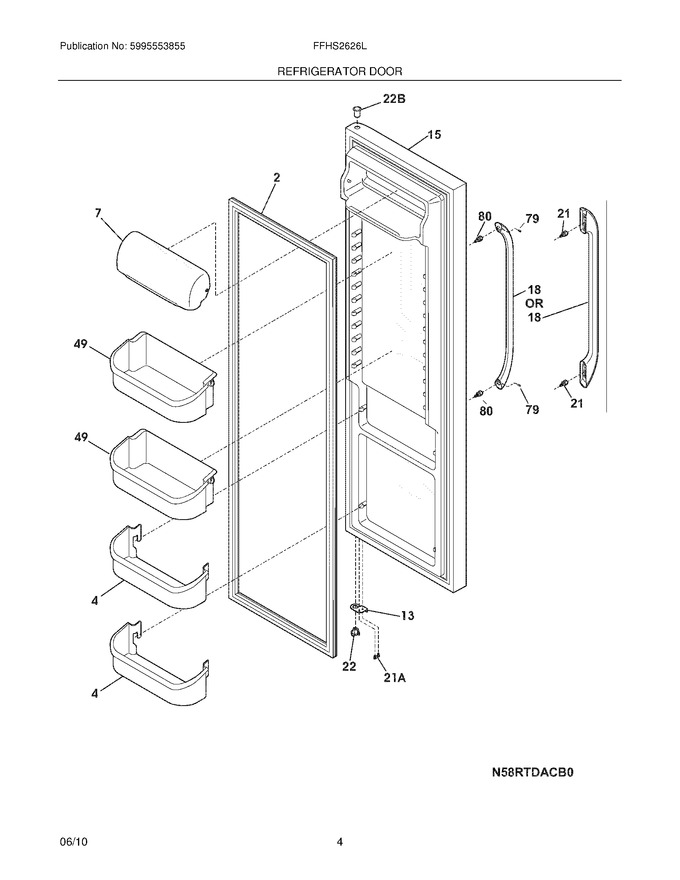

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 250.69
4	240323002		Bin-door,pseudo ,clear ,bottom			Immediately	$ 74.68
7	240326203		Door-dairy				$ 40.37
13	240581905		Door Stop,black ,ref				$ 66.94
15	242038817		Door-refr,black ,complete Assy		Appelez-nous	-
18	242059102		Handle-door,black				$ 88.69
21	241695904		Screw				$ 16.01
22	242015302		Bearing-hinge(ref),black ,closer				$ 11.80
49	240356402		Bin-door,gallon			Immediately	$ 118.70
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
22B	240328404		Bearing-hinge,black ,upper				$ 25.41
