SELECT A DIAGRAM
01 - Bulkhead, Lit/optional
02 - Top And Console

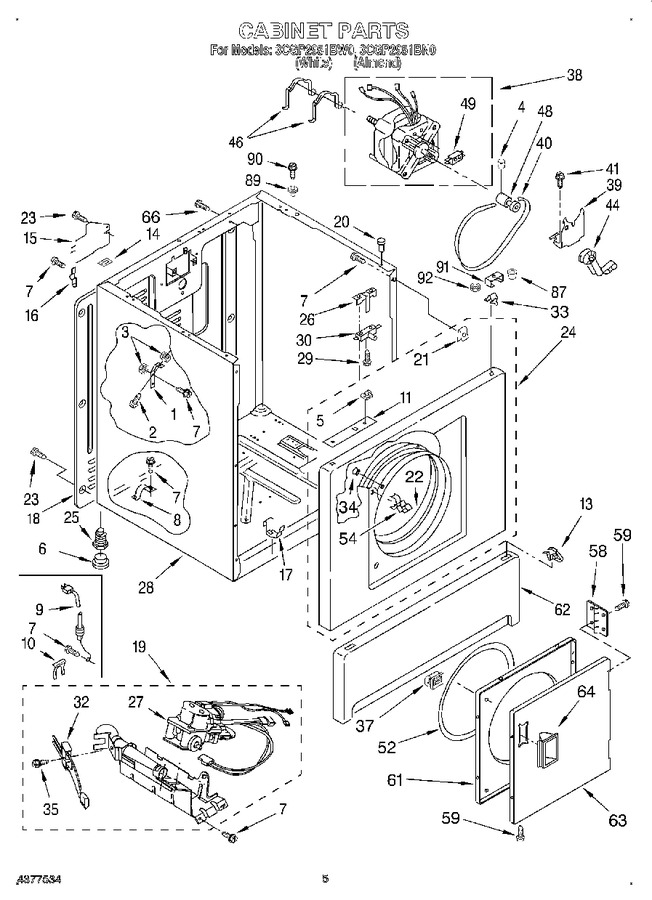

03 - Cabinet
04 - 3401772 Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 688074 | Bracket, Top Lock |
|
- | |||||
| 2 | 354730 | Bolt, 5/16-18 X 2-3/4 |
|
- | |||||
| 3 | 90984 | Nut, 5/16 |
|
- | |||||
| 4 | 690046 | Screw, Set |
|
- | |||||
| 5 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 8.14 | |||||
| 6 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 8 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 9 | 3387258 | Cord, Power |
|
- | |||||
| 10 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.40 | ||||
| 11 | 3357341 | Bracket, Front Top Lock |
|
- | |||||
| 13 | WP3388229 | Clip, Toe Panel (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 14 | 18849 | Pad, Top Hinge |
|
$ 20.14 | |||||
| 15 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 599.76 | ||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.82 | |||||
| 17 | WP297092 | Clip, Hinge (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 18 | 3396807 | Panel, Rear |
|
- | |||||
| 19 | 3401772 | Burner Assembly (50 Hz) (refer To Pages For Further Burner Breakdown) |
|
- | |||||
| 20 | 98669 | Locator, Top |
|
$ 12.03 | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.39 | ||||
| 22 | 279264 | Seal & Bearing Assembly (Replaces: 349462) |
|
Immediately | $ 74.52 | ||||
| 23 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 24 | 693980 | Front Panel Assembly (white) |
|
- | |||||
| 24 | 693981 | Front Panel Assembly (almond) |
|
- | |||||
| 25 | 49621 | Foot (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 25 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 26 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.09 | ||||
| 27 | 661580 | Valve, Gas (complete) |
|
$ 240.04 | |||||
| 28 | 3399581 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) (almond) |
|
- | |||||
| 28 | 3399580 | Cabinet Assembly (includes Illus. Nos. 9, 15, 18, & 39) (white) |
|
- | |||||
| 29 | WP98129 | Screw, Door Switch (Replaces: 98129) |
|
$ 7.56 | |||||
| 30 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 32 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 33 | WP18776 | Lock, Front Top (2) (Replaces: 18776) |
|
Immediately | $ 12.68 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 20.65 | |||||
| 35 | WPW10366705 | Screw & Washer (Replaces: 3393909) |
|
$ 7.50 | |||||
| 37 | WP3389441 | Catch, Door (Replaces: 3389441) |
|
$ 6.20 | |||||
| 38 | W11618508 | Motor Assembly 50 Hz. (Replaces: 685815) |
|
$ 348.11 | |||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 121.57 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 660997) |
|
Immediately | $ 18.15 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 (Replaces: 172455) |
|
Immediately | $ 13.37 | ||||
| 44 | WP691366 | Idler & Pulley (Replaces: 691366) |
|
Immediately | $ 22.47 | ||||
| 46 | WP660658 | (alt.) (Replaces: 343481) |
|
$ 7.83 | |||||
| 46 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 46 | WP660658 | (alt.) (Replaces: 685441) |
|
$ 7.83 | |||||
| 48 | W11618508 | Pulley, 50 Hz. (Replaces: 685064) |
|
$ 348.11 | |||||
| 49 | 279827 | Switch (Replaces: 3388235) |
|
Immediately | $ 191.95 | ||||
| 52 | W11613302 | Seal, Door (Replaces: 3390734) |
|
$ 53.63 | |||||
| 54 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 58 | WP348023 | Hinge & Pin Assembly (2) (Replaces: 348023) |
|
$ 8.42 | |||||
| 59 | WP694091 | Screw, Door (Replaces: 694091) |
|
$ 7.19 | |||||
| 61 | 280077 | Door, Rear (Replaces: 695656) |
|
$ 197.58 | |||||
| 62 | 697095 | Panel, Toe (white) |
|
- | |||||
| 62 | 697096 | Panel, Toe (almond) |
|
- | |||||
| 63 | WP348205 | Door, Front (white) (Replaces: 348205) |
|
Immediately | $ 147.39 | ||||
| 63 | 689314 | Door, Front (almond) |
|
- | |||||
| 64 | 689308 | Handle, Door (almond) |
|
$ 5.70 | |||||
| 64 | WP686711 | Handle, Door (white) (Replaces: 686711) |
|
Immediately | $ 7.95 | ||||
| 66 | W10850756 | Screw, 10-32 X 1/2 (grounding) (Replaces: 697776) |
|
$ 7.76 | |||||
| 87 | 356674 | Wedge, Cone |
|
$ 33.19 | |||||
| 89 | 356837 | Locator, Top |
|
- | |||||
| 90 | 427190 | Screw, 1/20-7/8 |
|
- | |||||
| 91 | WP487939 | Nut (Replaces: 271172) |
|
$ 7.72 | |||||
| 92 | 90984 | Nut, 5/16-18 |
|
- |
