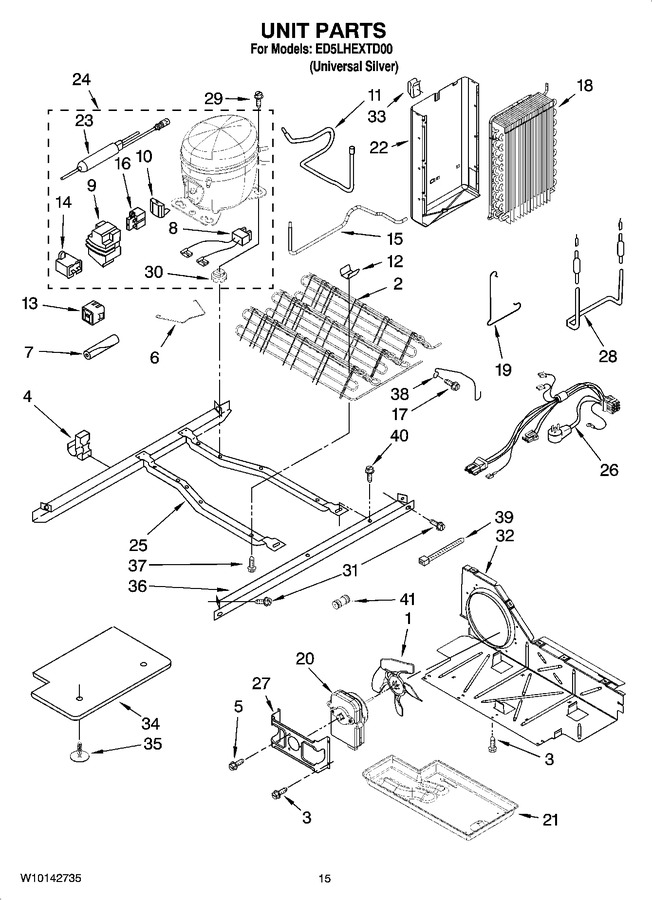

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
2	2324712		Condenser Assembly   (Replaces: 2304902)				$ 308.05
3	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
4	2208280		Clip, Wire & Tube		Appelez-nous	-
5	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
6	2223314		Clip, Retaining		Appelez-nous	-
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
8	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
9	WP2162358		Cover, Terminal (service Only)   (Replaces: 4387731)				$ 90.75
10	WP2154697		Overload, (service Only)   (Replaces: 2154697)				$ 130.73
11	2205765		Tube Suction				$ 36.04
12	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 18.46
13	WP2304885		Start Device, Combination (start Relay And Overload) For Production Compressor   (Replaces: 2304885)				$ 179.47
14	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
14	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
15	2261599		Tube, Condenser To Heat Loop				$ 232.07
16	2183454		Relay (service Only)		Appelez-nous	-
17	WP489478		Screw   (Replaces: 489478)				$ 7.75
18	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
19	2161324		Clamp		Appelez-nous	-
20	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
21	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
22	2217194		Heat Shield		Appelez-nous	-
23	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 52.57
23	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
24	W10309994		Compressor (includes Items 8, 9, 10, 13, 16, 23 & 30) (also Order 876765 Tube Kit)   (Replaces: 2320138)			Immediately	$ 612.90
25	2304904		Unit Mounting Frame		Appelez-nous	-
26	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: 2187783)				$ 293.67
27	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
28	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
29	876811		Screw   (Replaces: 489373)				$ 7.42
30	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
30	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
31	489340		Screw (5)		Appelez-nous	-
32	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
33	2155547		Clip, Heat Shield		Appelez-nous	-
34	2304899		Unit Cover, Bottom		Appelez-nous	-
35	489396		Clip				$ 10.72
36	2305374		Unit Mounting Rail				$ 80.64
37	W11544659		Screw   (Replaces: 8281232)				$ 13.67
38	2260517		Guard, Fan		Appelez-nous	-
39	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
40	WP489427		Screw   (Replaces: 489427)				$ 7.47
41	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
41	978028		Valve, Access (1/2)		Appelez-nous	-
41	978029		Valve Access (5/8``)				$ 93.85
41	978030		Valve, Access (3/4``)				$ 130.71
41	876764		Valve, Access(3/16``)			Immediately	$ 91.35
41	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
41	WP4373559		Union   (Replaces: 2209709)				$ 77.35
41	978026		Valve, Access (5/16``)			Immediately	$ 128.09
