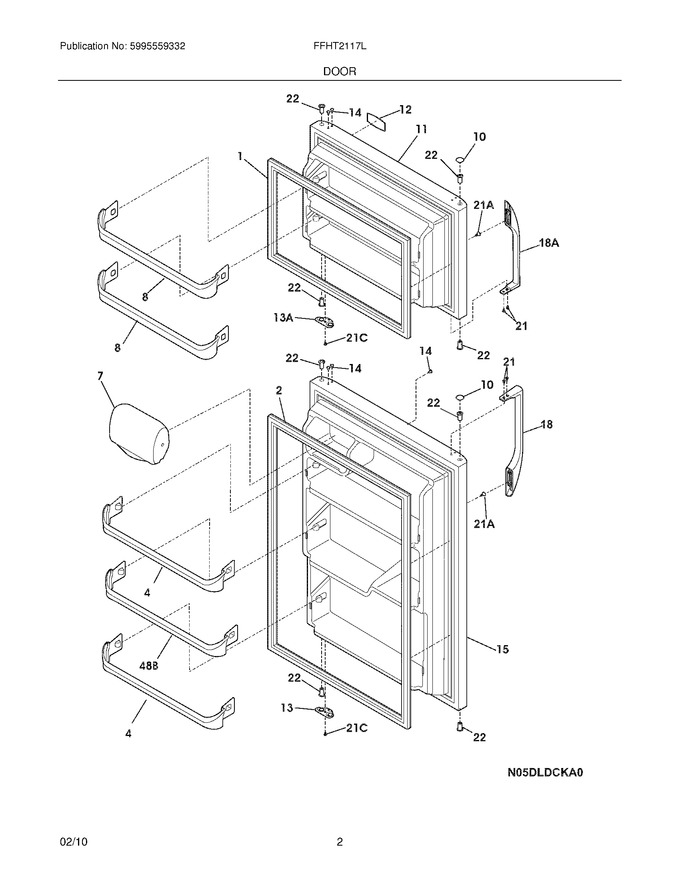

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240534901 | Rack-door |
|
Immediately | $ 52.25 | ||||
| 7 | 240337712 | Door-dairy,w/o Graphics ,clear (Replaces: 240337703) |
|
Immediately | $ 40.45 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 10 | 240381303 | Plug-button,black ,hinge Brg Hole |
|
$ 77.52 | |||||
| 11 | 240450313 | Door-frzr,black ,complete Assy |
|
$ 663.97 | |||||
| 12 | 242016301 | Nameplate |
|
$ 4.73 | |||||
| 13 | 240312422 | Door Stop,black ,refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494003 | Plug-button,black |
|
$ 20.22 | |||||
| 15 | 240450413 | Door-refr,black ,complete Assy |
|
$ 570.57 | |||||
| 18 | 5304506471 | Handle-door,black ,refr-rh/frzr-lh (Replaces: 242059506) |
|
Immediately | $ 106.18 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge,black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 13A | 240312415 | Door Stop,black ,frzr |
|
$ 23.63 | |||||
| 18A | 5304506471 | Handle-door,black ,refr-lh/frzr-rh (Replaces: 242059503) |
|
Immediately | $ 106.18 | ||||
| 21A | 240521303 | Screw,no.10-16 X 1/2 |
|
Immediately | $ 33.55 | ||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 4B | 240534701 | Rack-door,4b |
|
Immediately | $ 32.00 | ||||
| F1 | 242193211 | Gasket-frzr Door,black ,magnetic (Replaces: 241872511) |
|
$ 207.90 | |||||
| F2 | 242193214 | Gasket,refr Door Seal ,black ,magnetic (Replaces: 241872514) |
|
$ 212.06 |
