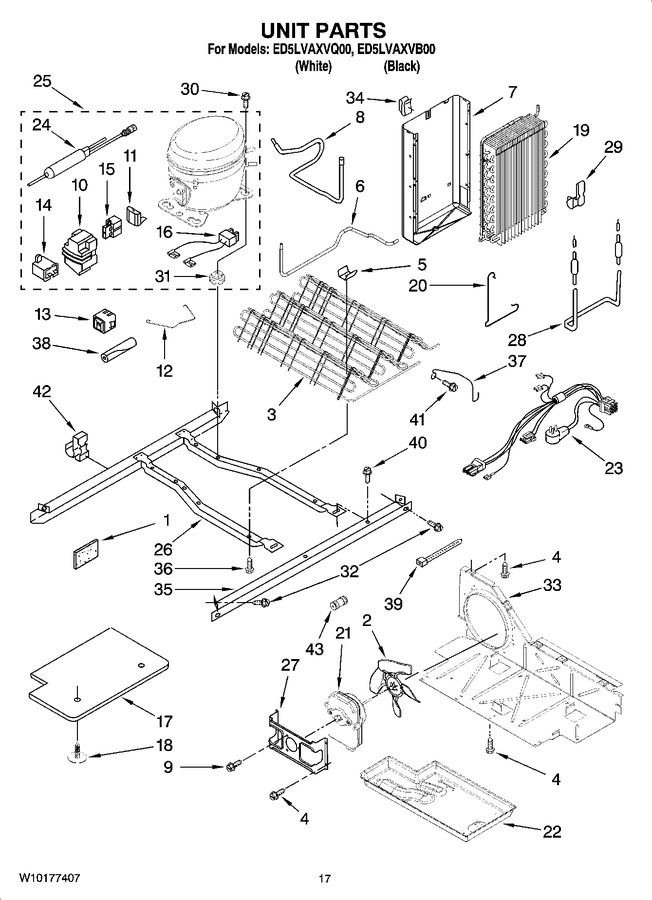

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 6 | 2261599 | Tube, Condenser To Heat Loop |
|
$ 243.67 | |||||
| 7 | 2217194 | Heat Shield And Drain Pan |
|
- | |||||
| 8 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 9 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 10 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 11 | WP2154697 | Overload, (service Only) (Replaces: 2154697) |
|
$ 137.27 | |||||
| 12 | 2255199 | Clip, Retaining |
|
- | |||||
| 13 | WPW10189190 | Start-device, Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2319793) |
|
Immediately | $ 131.29 | ||||
| 14 | WPW10662129 | Capacitor (production) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 14 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 15 | 2183454 | Relay (service Only) |
|
- | |||||
| 16 | WP2172890 | Wire, Capacitor (service Only) (Replaces: 4387765) |
|
$ 8.51 | |||||
| 17 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 18 | 489396 | Clip |
|
$ 11.26 | |||||
| 19 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 381.49 | ||||
| 20 | 2161324 | Clip |
|
- | |||||
| 21 | WP2188874 | Motor, Fan (Replaces: 2188874) |
|
Immediately | $ 113.96 | ||||
| 22 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 113.18 | ||||
| 23 | WPW10309395 | Harness, Unit (Replaces: 2187783) |
|
$ 308.35 | |||||
| 24 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 57.13 | ||||
| 24 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 25 | W10139462 | Compressor (includes Items 10, 11, 14, 15, 16 & 24) (also Order 876765 Tube Kit) (Replaces: W10120459) |
|
$ 668.33 | |||||
| 26 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 27 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 28 | WP2323198 | Heater, Defrost (Replaces: 2188175) |
|
Immediately | $ 90.70 | ||||
| 29 | W11623163 | Clip, Heater (Replaces: 2304287) |
|
- | |||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 31 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 31 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 32 | 489340 | Screw |
|
- | |||||
| 33 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 34 | 2155547 | Clip, Heat |
|
- | |||||
| 35 | 2305374 | Unit Mounting Rail |
|
$ 84.67 | |||||
| 36 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 37 | 2260517 | Guard, Fan |
|
- | |||||
| 38 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 39 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 8.30 | |||||
| 40 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 41 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 42 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 43 | WP4373559 | Union (Replaces: 2209709) |
|
$ 81.22 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- |
