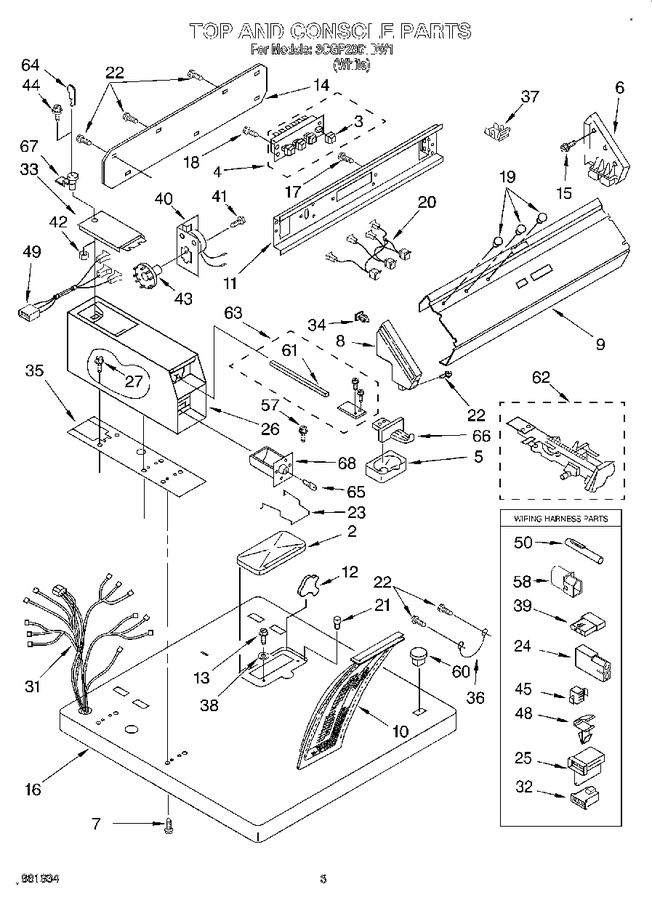

SELECT A DIAGRAM

01 - Bulkhead, Lit/optional


02 - Top And Console


03 - Cabinet


04 - 3402845 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	691205		Cover, Lint Screen		Appelez-nous	-
3	3348587		Button (4)				$ 12.40
4	3394078		Switch, Pushbutton		Appelez-nous	-
5	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 74.20
6	63795		Cap, End. (r.h.)				$ 14.10
7	W10841059		Screw, Thread Cutting   (Replaces: 98445)		Appelez-nous	-
8	3347710		End Cap (l.h.)		Appelez-nous	-
9	3393405		Panel, Control		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	3387361		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 691194)				$ 7.72
12	WPW10044470		Hinge, R.h.   (Replaces: 691193)				$ 7.72
13	W11693756		Screw, 8-15 X 3/8   (Replaces: 688983)			Immediately	$ 14.06
14	3387978		Panel, Rear		Appelez-nous	-
15	WPW10109200		Screw, 13-16 X 5/8   (Replaces: 97787)			Immediately	$ 8.00
16	3402300		Top		Appelez-nous	-
17	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.82
18	WP355214		Screw 8-18 X 11/32   (Replaces: 3393918)			Immediately	$ 8.07
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 12.51
20	3401760		Lights, Indicator (240 Volts)		Appelez-nous	-
21	297535		Bumper, Lint Lid		Appelez-nous	-
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
23	3352295		Guide, Drawer		Appelez-nous	-
24	717252		Receptacle, 2 Way		Appelez-nous	-
25	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
26	3402835		Case, Meter		Appelez-nous	-
27	W11715721		Bolt (5/16-24 X 1)   (Replaces: 3349065)				$ 7.12
31	3401768		Harness, Wiring		Appelez-nous	-
32	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
33	W11283272		Door, Service   (Replaces: 3351136)				$ 105.88
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3954812		Cushion, Console   (Replaces: 3348850)				$ 31.10
36	690853		Wire, Ground		Appelez-nous	-
37	W10113937		Wire, Ground Clip   (Replaces: 357572)				$ 10.83
38	237446		Washer		Appelez-nous	-
39	717253		Plug, 2-way		Appelez-nous	-
40	694307		Timer, 50 Hz.		Appelez-nous	-
41	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.50
42	WP90406		Nut, Cage   (Replaces: 90406)				$ 8.14
43	51-161-6		Cam, Timer (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
43	WP3387974		Cam, Timer (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
43	WP339855		Cam, Timer (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
44	358409		Screw & Washer		Appelez-nous	-
45	342529		Plug		Appelez-nous	-
48	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
49	3401692		Harness, Timer		Appelez-nous	-
50	351296		Receptacle		Appelez-nous	-
57	339805		Screw, 10-32 X 3/16				$ 13.39
58	717315		Receptacle, 4-way		Appelez-nous	-
60	387371		Plug, Lock Hole				$ 11.36
