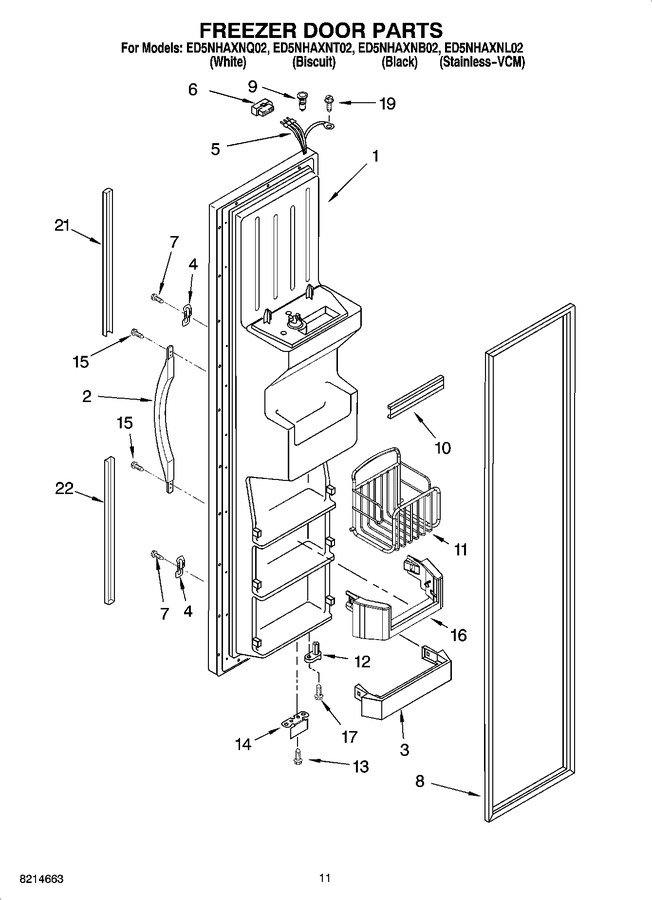

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2305781W | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2305781T | Freezer Door (includes 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | 2305781B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2305781L | Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm) |
|
- | |||||
| 2 | 2186649T | Handle (biscuit) |
|
- | |||||
| 2 | 2186649B | Handle (black) |
|
$ 72.96 | |||||
| 2 | 2186649W | Handle (white) |
|
$ 70.49 | |||||
| 3 | WP2171157 | Shelf Bin (2) (Replaces: 2171157K) |
|
$ 60.67 | |||||
| 4 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.40 | |||||
| 5 | 2198619 | Dispenser Harness |
|
- | |||||
| 6 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 | |||||
| 7 | WP3400852 | Screw (4) (Replaces: 3400852) |
|
$ 9.84 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 310.19 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 316.66 | |||||
| 9 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 7.76 | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 23.11 | ||||
| 11 | 2304309 | Basket, Tilt Out |
|
$ 77.01 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 | |||||
| 14 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 15 | WP489491 | Screw (4) (Replaces: 489491) |
|
$ 6.95 | |||||
| 16 | 2223334 | Trivet, Tilt Out |
|
$ 25.46 | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 21 | 2194973W | Trim, Door-top (white) |
|
$ 5.65 | |||||
| 21 | 2194973B | Trim, Door-top (black) |
|
- | |||||
| 21 | 2194973T | Trim, Door-top (biscuit) |
|
- | |||||
| 22 | WP2194969B | Trim, Door-bottom (black) (Replaces: 2194969B) |
|
$ 116.40 | |||||
| 22 | 2194969T | Trim, Door-bottom (biscuit) |
|
- | |||||
| 22 | 2194969W | Trim, Door-bottom (white) |
|
$ 5.51 |
