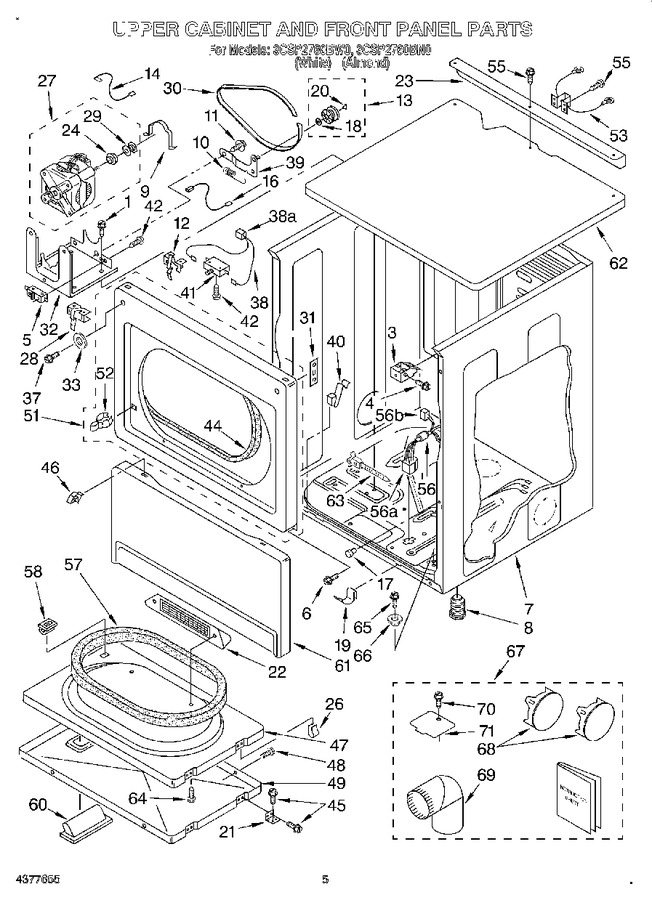

01 - Lower Cabinet And Front Panel
02 - Control Panel And Separator
03 - Upper Cabinet And Front Panel
04 - Bulkhead, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 3 | 3391846 | Clip, Front Panel (2) |
|
$ 21.15 | |||||
| 4 | WP488627 | Screw, 10-12 X 1 (Replaces: 342055) |
|
$ 7.57 | |||||
| 5 | 279782 | Switch, Broken Belt (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 6 | WP90767 | Screw, 10-16 (Replaces: 3390814) |
|
Immediately | $ 7.82 | ||||
| 7 | 3402264 | Cabinet (upper) (white) |
|
- | |||||
| 7 | 3402265 | Cabinet (upper) (almond) |
|
- | |||||
| 8 | WP689172 | Foot, Dryer (plastic) (2) (Replaces: 689172) |
|
$ 81.44 | |||||
| 9 | WP660658 | Clamp, Motor (2) (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | WP691581 | Lever, Door Switch (Replaces: 691581) |
|
Immediately | $ 8.09 | ||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 32.51 | ||||
| 14 | 3398948 | Wire, Jumper |
|
$ 61.58 | |||||
| 16 | 279782 | Wire, Belt Switch (Replaces: 3394881) |
|
Immediately | $ 54.44 | ||||
| 17 | 693152 | Bumper |
|
$ 10.96 | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.96 | ||||
| 19 | WP297092 | Clip (2) (Replaces: 297092) |
|
Immediately | $ 8.24 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 21 | W11175815 | Hinge And Pin (2) (Replaces: 3389247) |
|
$ 81.41 | |||||
| 22 | 3391611 | Grill |
|
- | |||||
| 23 | 3393423 | Bracket, Angle |
|
- | |||||
| 24 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 26 | 3389249 | Nut, ``u`` (4) |
|
- | |||||
| 27 | W10416573 | Motor Assembly (50 Hz.) (nos. 24 & 29 Not Included With Motor) (Replaces: 3404470) |
|
$ 238.86 | |||||
| 28 | WP8066120 | Lever, Snap Switch (Replaces: 3391408) |
|
Immediately | $ 33.11 | ||||
| 29 | 3402548 | Pulley 50 Hz. |
|
- | |||||
| 30 | 661570V | Belt, Drive (Replaces: 661570) |
|
Immediately | $ 32.81 | ||||
| 31 | WP3390902 | Clip, Door Hinge (2) (Replaces: 3390902) |
|
$ 11.11 | |||||
| 32 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 133.59 | |||||
| 33 | W11089212 | Washer (2) (Replaces: 3392186) |
|
$ 9.67 | |||||
| 37 | WP3373329 | Screw (2) (Replaces: 3393258) |
|
$ 7.68 | |||||
| 38 | 3389967 | Harness, Door Switch |
|
- | |||||
| 38 | 94613 | Term |
|
- | |||||
| 38 | 717253 | Plug, 2-way (uses Terminals |
|
- | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | 3388600 | Clip, Lint Duct |
|
- | |||||
| 41 | W10820036 | Switch, Door (Replaces: 347207) |
|
Immediately | $ 30.50 | ||||
| 42 | WP98129 | Screw, 6-20 X 7/8 (Replaces: 98129) |
|
$ 7.56 | |||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 45 | WP488627 | Screw, 10-32 X 1/2 (Replaces: 342055) |
|
$ 7.57 | |||||
| 46 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 47 | 3393681 | Door, Rear |
|
- | |||||
| 48 | WP694091 | Screw (Replaces: 694091) |
|
$ 7.19 | |||||
| 49 | W11663440 | Door, Front (white) (Replaces: 3387872) |
|
$ 259.37 | |||||
| 49 | 3387873 | Door, Front (almond) |
|
- | |||||
| 51 | 279723 | Upper Front Panel (almond) (Replaces: 3393082) |
|
- | |||||
| 51 | 3393081 | Upper Front Panel (white) |
|
- | |||||
| 52 | 279570 | Stike, Door (Replaces: 696144) |
|
Immediately | $ 8.89 | ||||
| 53 | 3388580 | Cable |
|
- | |||||
| 55 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 56 | 94613 | Term |
|
- | |||||
| 56 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 56 | 3404475 | Harness (upper) |
|
- | |||||
| 56 | 692997 | Plug, Multi- Terminal (uses Terminals |
|
- | |||||
| 56 | 693168 | Terminal (2) |
|
- | |||||
| 56 | 693163 | Terminal (2) |
|
- | |||||
| 56 | 963165 | (3) |
|
- | |||||
| 56 | 717252 | Receptacle (use Terminals |
|
- | |||||
| 57 | WP3390735 | Seal, Door (Replaces: 3390735) |
|
$ 130.60 | |||||
| 58 | 279570 | Catch, Door Assembly (Replaces: 3392538) |
|
Immediately | $ 8.89 | ||||
| 60 | 3389522 | Handle, Door (white) |
|
$ 77.90 | |||||
| 60 | 3389523 | Handle, Door (almond) |
|
- | |||||
| 61 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 61 | 697216 | Panel, Toe (almond) |
|
- | |||||
| 62 | 3389351 | Top (upper) (white) |
|
- | |||||
| 62 | 3389352 | Top (upper) (almond) |
|
- | |||||
| 63 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 31.84 | |||||
| 64 | 697777 | Screw, 11-16 X 7/8 |
|
- | |||||
| 65 | 3400500 | Bolt, 5/16-18 (2) |
|
Immediately | $ 13.37 | ||||
| 66 | 3389233 | Bushing |
|
- | |||||
| 67 | W10470674 | Almond (Replaces: 279819) |
|
Immediately | $ 76.65 | ||||
| 67 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.65 | ||||
| 68 | W10470674 | Plug, Multivent (white) (Replaces: 697750) |
|
Immediately | $ 76.65 | ||||
| 68 | WPW10404617 | Plug, Multivent (almond) (Replaces: 697751) |
|
$ 71.98 | |||||
| 69 | 279731 | 4`` - 90 Elbow |
|
- | |||||
| 70 | WPW10139210 | Screw (Replaces: 3390646) |
|
$ 7.50 | |||||
| 71 | WPW10354249 | Plate, Cover (bottom Exhaust) (Replaces: 3389808) |
|
$ 8.96 |
