SELECT A DIAGRAM

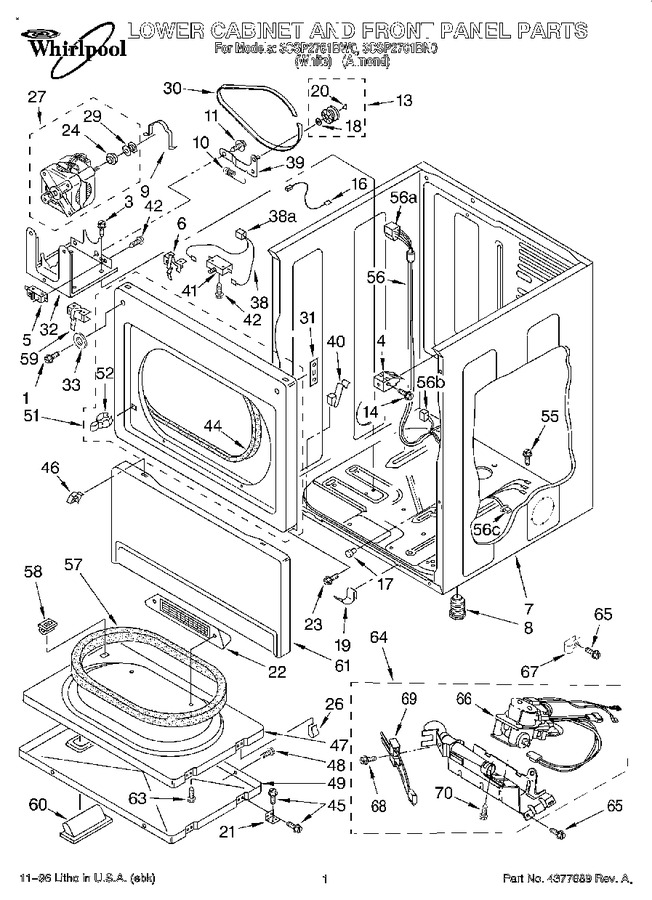

01 - Lower Cabinet And Front Panel


02 - Optional


03 - Control Panel And Separator


04 - Upper Cabinet And Front Panel


05 - Optional


06 - Upper And Lower Bulkhead, Literature


07 - 3402609 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	342005		Screw (2)		Appelez-nous	-
3	WP681414		Screw, 10-16 X 1/2   (Replaces: 3390663)			Immediately	$ 7.85
4	3391846		Clip, Front Panel (2)				$ 21.15
5	279782		Switch, Broken Belt   (Replaces: 3394881)			Immediately	$ 54.44
6	WP691581		Lever, Door Switch   (Replaces: 691581)			Immediately	$ 8.09
7	3402265		Cabinet, Lower (almond)		Appelez-nous	-
7	3402264		Cabinet, Lower (white)		Appelez-nous	-
8	49621		Foot, Dryer (plastic) (4)   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 32.51
14	WP3387230		Screw, 10-12 X 1   (Replaces: 3387230)			Immediately	$ 8.54
16	3394081		Wire, Belt Switch				$ 37.57
17	693152		Bumper				$ 10.96
18	WP233520		Washer, Thrust   (Replaces: 233520)			Immediately	$ 7.96
19	WP297092		Clip (2)   (Replaces: 297092)			Immediately	$ 8.24
20	WPW10512946		Tri-ring   (Replaces: 690997)			Immediately	$ 8.80
21	W11175815		Hinge And Pin (2)   (Replaces: 3389247)				$ 81.41
22	3391611		Grill		Appelez-nous	-
23	WP3373329		Screw, 10-16 X 1/2   (Replaces: 3393258)				$ 7.68
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
26	3389249		Nut, ``u`` (4)		Appelez-nous	-
27	W10416573		Motor Assembly (50 Hz.) (nos. 24 & 29 Not Included With Motor)   (Replaces: 3404470)				$ 238.86
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 661570)			Immediately	$ 32.81
31	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 11.11
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 133.59
33	W11089212		Washer   (Replaces: 3392186)				$ 9.67
38	717253		Plug, 2-way (uses Terminal 94613 Term)		Appelez-nous	-
38	3389967		Harness, Door Switch		Appelez-nous	-
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	3388600		Clip, Lint Duct		Appelez-nous	-
41	W10820036		Switch, Door (includes Illus. No. 6)   (Replaces: 347207)			Immediately	$ 30.50
42	WP98129		Screw   (Replaces: 98129)				$ 7.56
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	WP488627		Screw, 10-32 X 1/2   (Replaces: 342055)				$ 7.57
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	3393681		Door, Rear		Appelez-nous	-
48	WP694091		Screw   (Replaces: 694091)				$ 7.19
49	W11663440		Door, Front (white)   (Replaces: 3387872)				$ 259.37
49	3387873		Door, Front (almond)		Appelez-nous	-
51	3393081		Upper Front Panel (white)		Appelez-nous	-
51	279723		Upper Front Panel (almond)   (Replaces: 3393082)		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
55	WP488729		Screw, No. 8 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
56	3404478		Harness (lower)		Appelez-nous	-
56	691707		Receptacle, 3-way (uses Terminal 94614)		Appelez-nous	-
56	717252		Receptacle (uses Terminals 94614 Or 94613 Term)		Appelez-nous	-
56	3390423		Plug, Mult- Terminal (uses Terminals 94613)		Appelez-nous	-
57	WP3390735		Seal, Door   (Replaces: 3390735)				$ 130.60
58	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.89
59	WP8066120		Lever, Snap Switch   (Replaces: 3391408)			Immediately	$ 33.11
60	3389522		Handle, Door (white)				$ 77.90
60	3389523		Handle, Door (almond)		Appelez-nous	-
61	697216		Panel, Toe (almond)		Appelez-nous	-
61	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 238.33
63	697777		Screw, 11-16 X 7/8		Appelez-nous	-
64	3402609		Burner Assembly 50 Hz.		Appelez-nous	-
65	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
66	697441		Valve, Gas (complete) 60 Hz		Appelez-nous	-
67	3387561		Clamp, Pipe		Appelez-nous	-
68	WPW10366705		Screw, 8-32 X 5/8   (Replaces: 3393909)				$ 7.50
69	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
70	WP693995		Screw, 8-18 X 3/8 (3)   (Replaces: 3387057)			Immediately	$ 7.19

    View Diagram in Separate Window       Print Part List
