SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

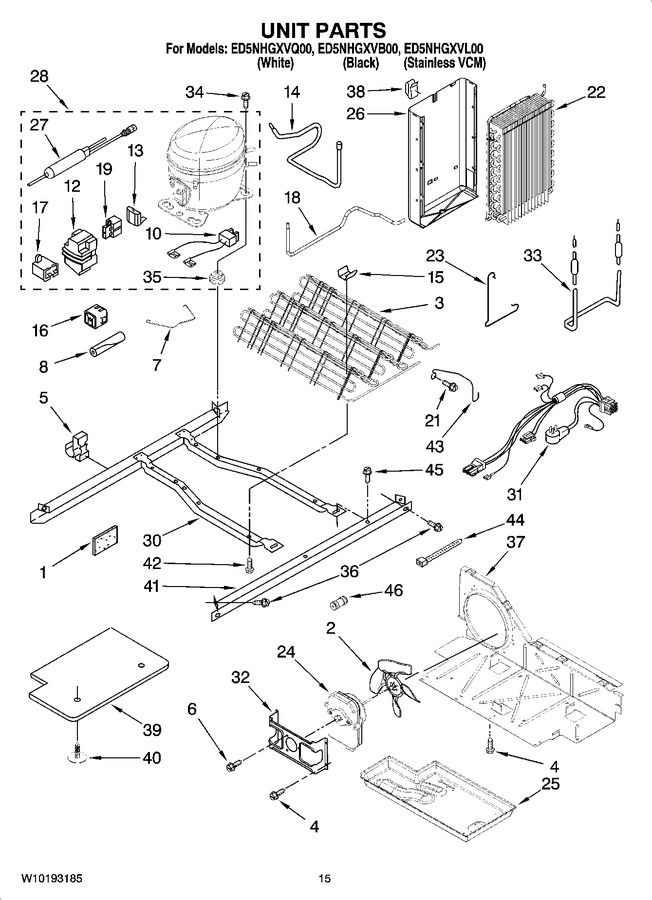

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 62.11
3	2324712		Condenser Assembly   (Replaces: 2304902)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
7	2255199		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
10	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
12	WP2162358		Cover, Terminal (service Only)   (Replaces: 4387731)				$ 90.75
13	WP2154697		Overload, (service Only)   (Replaces: 2154697)				$ 130.73
14	2205765		Tube Suction				$ 36.04
15	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 18.46
16	WPW10189190		Start-device, Combination (start Relay And Overload For Production Compressor Only)   (Replaces: 2319793)			Immediately	$ 131.29
17	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
17	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
18	2261599		Tube, Condenser To Heat Loop				$ 232.07
19	2183454		Relay (service Only)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
23	2161324		Clamp		Appelez-nous	-
24	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 113.96
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2217194		Heat Shield		Appelez-nous	-
27	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 52.57
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 30.78
28	W10139462		Compressor (includes Items 10, 12, 13, 17, 19, 27 & 35) (also Order 876765 Tube Kit)   (Replaces: W10120459)				$ 636.50
30	2304904		Unit Mounting Frame		Appelez-nous	-
31	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: 2187783)				$ 293.67
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	876811		Screw   (Replaces: 489373)				$ 7.42
35	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
35	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
36	489340		Screw (5)		Appelez-nous	-
37	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
38	2155547		Clip, Heat Shield		Appelez-nous	-
39	2304899		Unit Cover, Bottom		Appelez-nous	-
40	489396		Clip				$ 10.72
41	2305374		Unit Mounting Rail				$ 80.64
42	W11544659		Screw   (Replaces: 8281232)				$ 13.67
43	2260517		Guard, Fan		Appelez-nous	-
44	WPW10339879		Strap   (Replaces: 2263990)				$ 7.90
45	WP489427		Screw   (Replaces: 489427)				$ 7.47
46	WP4373559		Union   (Replaces: 2209709)				$ 77.35
	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
	876764		Valve, Access(3/16``)			Immediately	$ 91.35
	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
	978026		Valve, Access (5/16``)			Immediately	$ 128.09
	978030		Valve, Access (3/4``)				$ 130.71
	978029		Valve Access (5/8``)				$ 93.85
	978028		Valve, Access (1/2)		Appelez-nous	-
