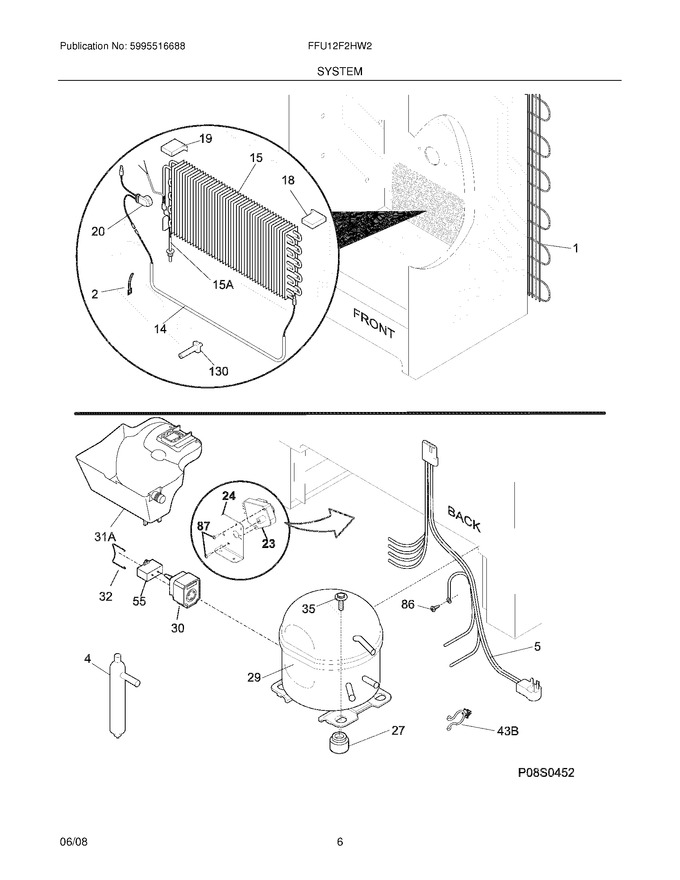

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
4	216987500		Drier-filter		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 108.68
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 30.58
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954214		Controller,compressor				$ 74.81
32	216954300		Clip,controller				$ 18.90
35	297177200		Bolt,compressor		Appelez-nous	-
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909913)			Immediately	$ 39.31
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 125.21
31A	297216900		Pan-drain		Appelez-nous	-
43B	297315800		Clip   (Replaces: 297048400)				$ 11.25
F1	5300123788		Condenser				$ 706.44
F15	297414800		Evaporator   (Replaces: 216997200)				$ 161.44
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 63.94
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297223600)			Immediately	$ 752.48
F5	297172200		Harness-main		Appelez-nous	-
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 76.31
NI	216502500		Sleeve,suction Line				$ 12.05
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	297014500		Plug-suction Line		Appelez-nous	-
