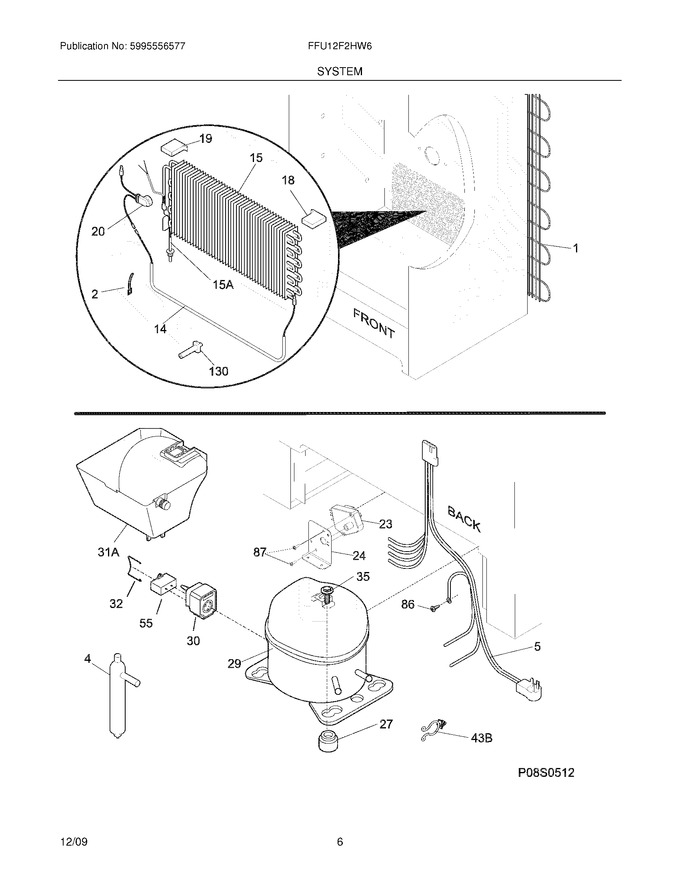

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 71.65
4	216987500		Drier-filter		Appelez-nous	-
14	297216201		Heater-defrost		Appelez-nous	-
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
20	297216600		Thermostat,defrost			Immediately	$ 30.58
24	216968501		Bracket-timer				$ 74.70
27	218513300		Grommet-compr Mtg,(4)				$ 47.25
30	216954222		Controller				$ 94.50
32	216649200		Clip,controller				$ 6.30
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	297286812		Capacitor,run ,12 Mf   (Replaces: 216985002)			Immediately	$ 13.09
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297348600		Heat Exchanger   (Replaces: 216976200)				$ 134.15
31A	297307800		Pan-drain		Appelez-nous	-
43B	297315800		Clip,wire				$ 11.25
F1	5300123788		Condenser				$ 706.44
F15	297414800		Evaporator   (Replaces: 216997200)				$ 161.44
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 72.16
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297307203)			Immediately	$ 817.80
F5	297172200		Harness-main		Appelez-nous	-
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	5303311565		Clip-cable				$ 2.10
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	241500305		Screw,no.8 ,18x.63 ,self Pierce   (Replaces: 297174300)				$ 3.37
NI	216502500		Sleeve,suction Line				$ 12.05
NINo.	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
