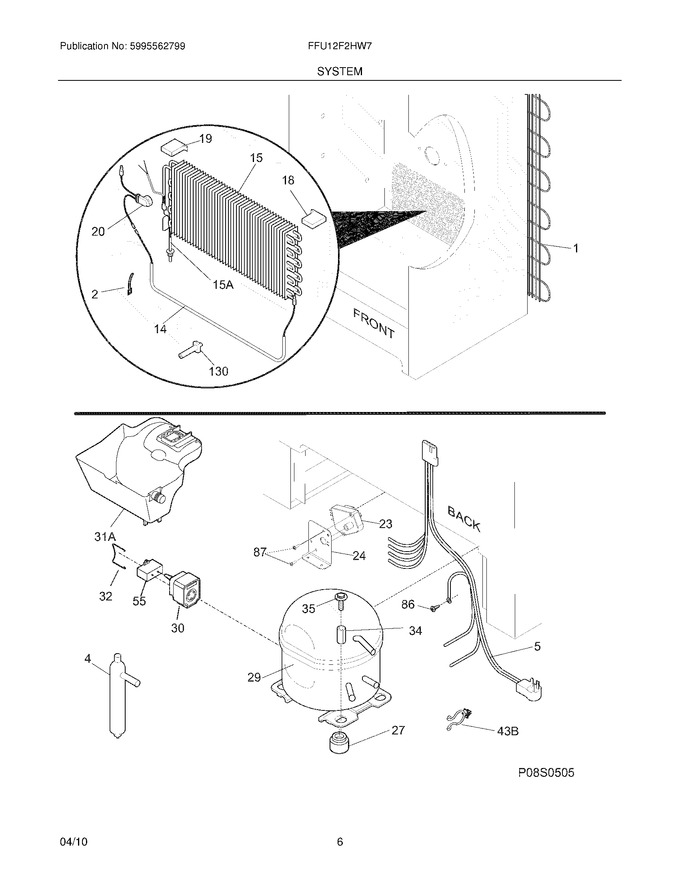

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 71.65
4	5303305677		Drier-filter   (Replaces: 216987501)			Immediately	$ 35.19
18	297078701		Insulator-evap,styrofoam ,rh				$ 4.02
19	297078801		Insulator-evap,styrofoam ,lh				$ 4.02
20	297216600		Thermostat,defrost			Immediately	$ 30.58
24	216968501		Bracket-timer				$ 74.70
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954214		Controller,compressor				$ 74.81
32	216954300		Clip,controller				$ 18.90
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
55	297286803		Capacitor-run,15 Mf   (Replaces: 216985001)			Immediately	$ 31.97
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297348500		Heat Exchanger   (Replaces: 216565700)				$ 125.21
31A	297216900		Pan-drain		Appelez-nous	-
43B	297315800		Clip,wire				$ 11.25
F1	5300123788		Condenser				$ 706.44
F14	5304496687		Heater-defrost   (Replaces: 297216202)				$ 108.68
F15	297414800		Evaporator   (Replaces: 216997200)				$ 161.44
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 72.16
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297223600)			Immediately	$ 817.80
F5	297172200		Harness-main		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 12.05
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	241500305		Screw,no.8 ,18x.63   (Replaces: 297174300)				$ 3.37
NINo.	297366805		Cord-power   (Replaces: 297169904)				$ 76.31
