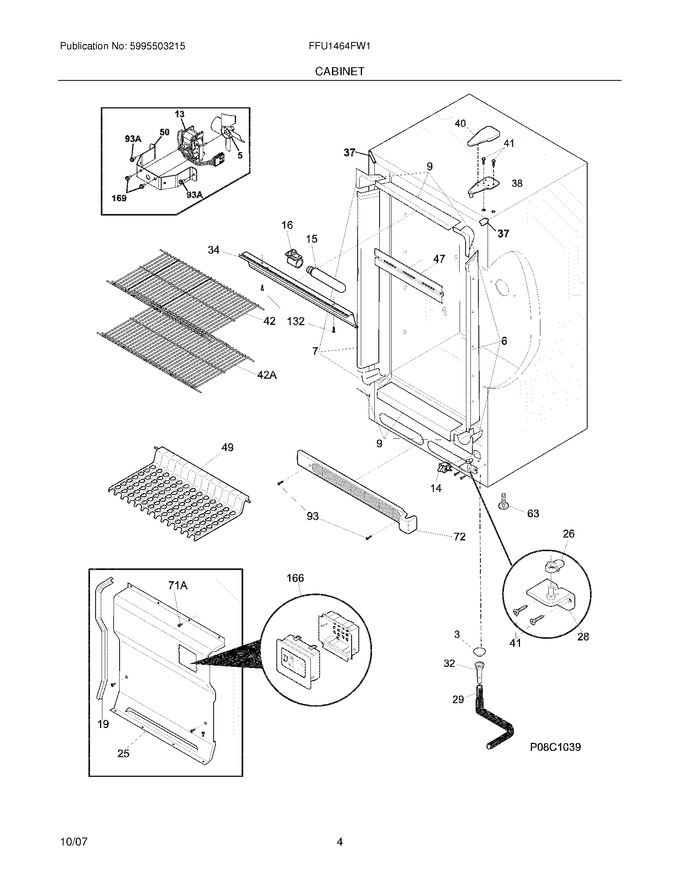

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	297200300		Breaker Kit W/corners,no Lock Slot				$ 39.69
7	297200500		Breaker Kit W/corners,incl Lock Catch				$ 74.99
9	297200200		Breaker Kit W/corners,28`` ,top And Bottom				$ 45.32
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
19	216204900		Gasket, Evap Cover				$ 51.45
25	297098602		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 9.80
28	297164500		Hinge-bottom,stepped Pin				$ 37.76
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	216816201		Shield-light				$ 659.66
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.88
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 21.69
40	297164400		Cover-hinge				$ 14.06
41	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
42	297119800		Shelf,16.69 X 23.88 ,white ,(2)		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 28.12
49	216937600		Trivet				$ 83.50
50	216394050		Bracket,fan Motor Mount				$ 25.28
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297036800		Grille/kickplate,28`` ,white				$ 37.76
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
132	5304460601		Screw,6-20ab X 3/8		Appelez-nous	-
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 14.18
42A	297119900		Shelf,14.50 X 23.88 ,white		Appelez-nous	-
71A	297146800		Screw,8-18ab X 0.470 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 14.46
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 61.47
F16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 21.69
F166	297282800		Electronic Control,assy   (Replaces: 297142500)				$ 242.55
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	216795313		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
