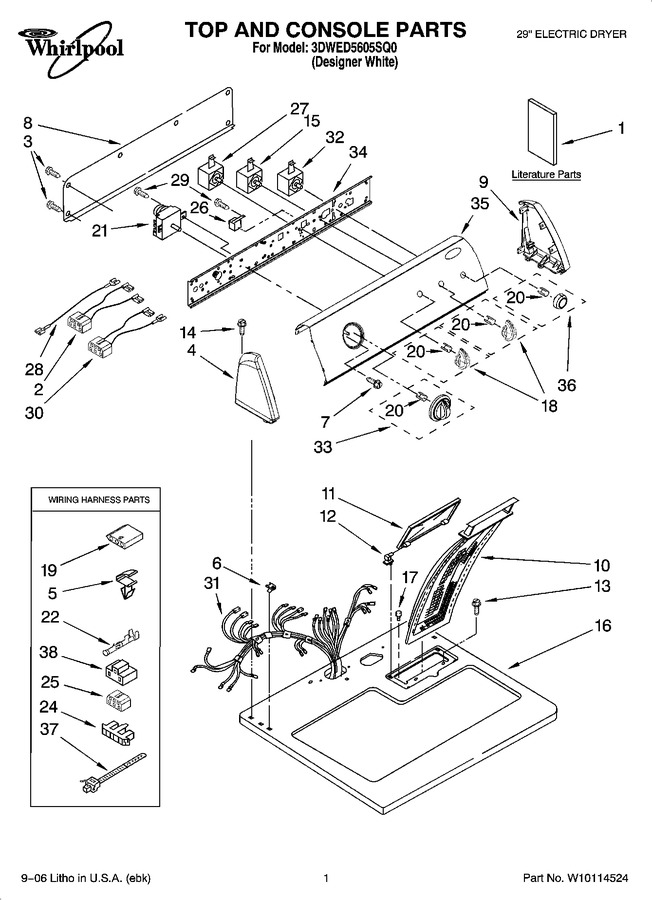

SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | W10112128 | Use & Care Guide |
|
- | |||||
| 1 | 3397626 | Installation Instructions (spanish) |
|
- | |||||
| 1 | 3397627 | Installation Instructions (english) |
|
- | |||||
| 1 | 8533211 | Wiring Diagram |
|
- | |||||
| 2 | 8539893 | Wire-jumper Assembly (Replaces: 3396029) |
|
$ 18.84 | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8271369 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP3394427 | Clip (Replaces: 3394427) |
|
$ 7.79 | |||||
| 6 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.39 | |||||
| 7 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 8 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 9 | 8271363 | Cap, End (r.h.) |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 15 | W10168170 | Switch, Wrinkle Guard (Replaces: 8316076) |
|
$ 196.84 | |||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 18 | 8565944 | Knob, Control |
|
$ 25.10 | |||||
| 19 | 3936144 | Connector (3-circuit) |
|
$ 20.21 | |||||
| 20 | WP8536939 | Spring Clip (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 21 | WP3406282 | Timer, 60 Hz. (Replaces: 3406282) |
|
$ 350.94 | |||||
| 22 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 24 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 25 | 3347243 | Connector 6-circuit |
|
- | |||||
| 26 | 3952439 | Buzzer, Mini |
|
- | |||||
| 27 | W10168169 | Switch, Temperature (Replaces: 3399642) |
|
$ 89.11 | |||||
| 28 | 3401684 | Wire, Jumper |
|
$ 34.57 | |||||
| 29 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.82 | ||||
| 30 | 3397695 | Wire, Jumper (guard On/off) |
|
$ 86.40 | |||||
| 31 | 8529855 | Harness, Wiring |
|
- | |||||
| 32 | WPW10112633 | Switch, Push-to-start (Replaces: 8318447) |
|
$ 128.85 | |||||
| 33 | 8566061 | Knob, Timer |
|
$ 26.93 | |||||
| 34 | 8544895 | Bracket, Control |
|
- | |||||
| 35 | 8566078 | Panel, Control |
|
- | |||||
| 36 | WP8566065 | Knob, Push-to-start (Replaces: 8566065) |
|
$ 52.67 | |||||
| 37 | 3391249 | Tie, Cable |
|
- | |||||
| 38 | 3401144 | Connector, (pts Relay) |
|
$ 12.20 |
