SELECT A DIAGRAM

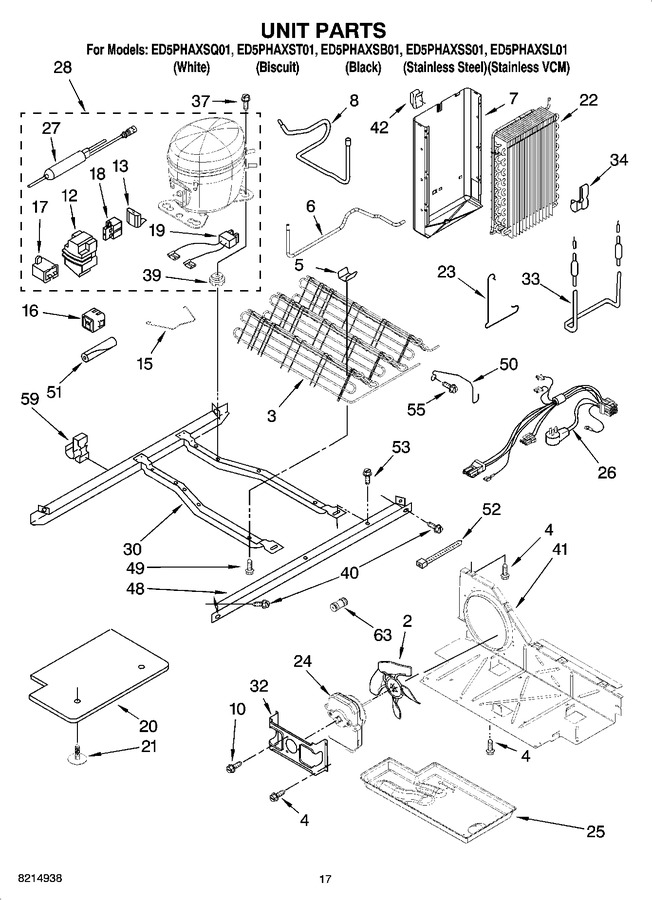

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
3	2324712		Condenser Assembly   (Replaces: 2223953)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 18.46
6	2261599		Tube, Condenser To Heat Loop				$ 232.07
7	2217194		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube Suction				$ 36.04
10	WP8533993		Screw   (Replaces: 8533993)				$ 10.57
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2154697		Overload, (service Only)   (Replaces: 2154697)				$ 130.73
15	2255199		Clip, Retaining		Appelez-nous	-
16	WP2319792		Start-device, Combination (start Relay And Overload) For Production Compressor Only   (Replaces: 2255198)				$ 170.65
17	WPW10662129		Capacitor (production)   (Replaces: 2169373)			Immediately	$ 58.86
17	WPW10662129		Capacitor (service)   (Replaces: 1118576)			Immediately	$ 58.86
18	2183454		Relay (service Only)		Appelez-nous	-
19	WP2172890		Wire, Capacitor (service Only)   (Replaces: 4387765)				$ 8.10
20	2206281		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 10.72
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 363.32
23	2161324		Clip		Appelez-nous	-
24	W10124096		Motor, Fan   (Replaces: 2188727)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2187510		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2319825)			Immediately	$ 52.57
28	W10309994		Compressor (includes Items 12, 13, 17, 18, 19 & 27) (also Order 876765 Tube Kit)   (Replaces: 2255197)			Immediately	$ 612.90
30	2304904		Unit Mounting Frame   (Replaces: 2157397)		Appelez-nous	-
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	W11623163		Clip, Heater   (Replaces: 2304287)		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.42
39	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 96.38
42	2155547		Clip, Heat		Appelez-nous	-
48	2305374		Unit Mounting Rail				$ 80.64
49	W11544659		Screw   (Replaces: 8281232)				$ 13.67
50	2260517		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
55	WP489478		Screw   (Replaces: 489478)				$ 7.75
59	2208280		Clip, Wire & Tube		Appelez-nous	-
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978030		Valve, Access (3/4``)				$ 130.71
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	WP4373559		Union   (Replaces: 2209709)				$ 77.35
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
