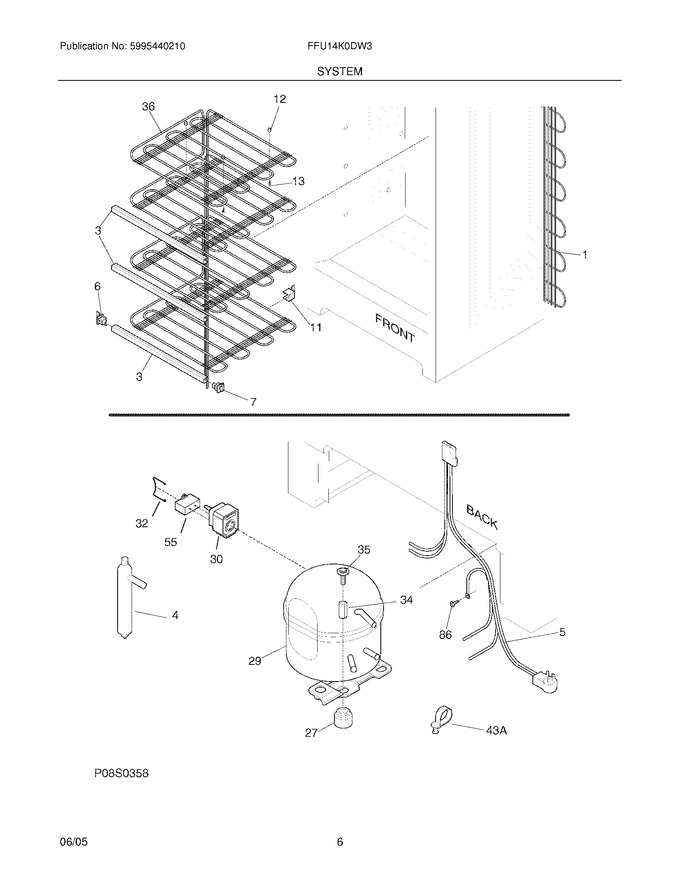

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304509722		Trim-shelf,white ,evaporator ,(3)   (Replaces: 216847804)				$ 31.33
6	297001600		Support-shelf,front Lh				$ 20.09
7	297001500		Support-shelf,front Rh				$ 20.09
11	216474600		Support-rear Shelf				$ 16.55
12	216225700		Grommet-spacer				$ 7.77
13	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
30	216954200		Controller,compressor ,5 Speed				$ 70.88
32	216954300		Clip,controller				$ 18.90
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
55	297286812		Capacitor,run ,10mf   (Replaces: 216985000)			Immediately	$ 13.09
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	216629700		Clip		Appelez-nous	-
F1	5300123788		Condenser				$ 706.44
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 807.12
F36	297234400		Evaporator,tubing Assy ,white   (Replaces: 216940000)				$ 410.47
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 35.19
F5	216987000		Harness-ext,main				$ 145.30
NI	216502500		Sleeve,suction Line				$ 12.05
