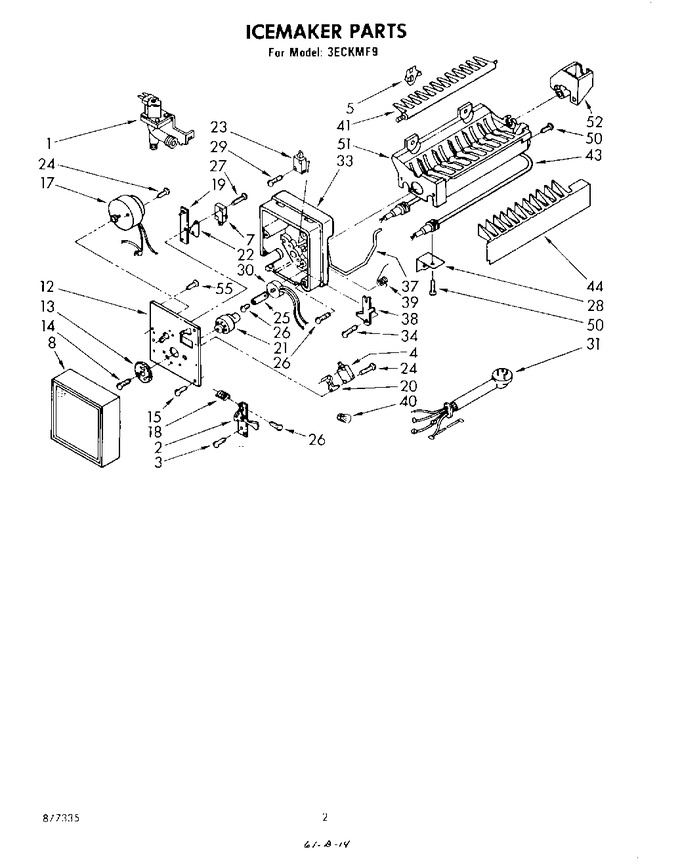

SELECT A DIAGRAM

01 - Section


02 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	627733		Valve Solenoid		Appelez-nous	-
2	627248		Lever & Plate Assembly		Appelez-nous	-
3	488622		Screw, 4-40 X 1/4		Appelez-nous	-
4	627720		Switch, S.p.d.t.		Appelez-nous	-
5	WP627712		Support Clip (2)   (Replaces: 627712)				$ 9.16
7	625947		Switch, S.p.s.t.		Appelez-nous	-
8	627651		Cover		Appelez-nous	-
12	627022		Plate, Mounting		Appelez-nous	-
13	625914		Gear		Appelez-nous	-
14	488957		Screw		Appelez-nous	-
15	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
17	626073		Motor		Appelez-nous	-
18	627163		Spring		Appelez-nous	-
19	627024		Plate, Valve Switch		Appelez-nous	-
20	625834		Spacer, Holding Switch				$ 7.99
21	625913		Cam		Appelez-nous	-
22	625835		Insulator		Appelez-nous	-
23	625851		Switch, S.p.d.t.		Appelez-nous	-
24	488361		Screw, 4-40 X 1		Appelez-nous	-
25	625829		Clamp		Appelez-nous	-
26	488372		Screw, 8-32 X 1		Appelez-nous	-
27	00488362		Screw, 4-40 X 3/4 (2)   (Replaces: 488362)				$ 144.58
28	WP2256087		Bracket   (Replaces: 625910)				$ 97.65
29	488360		Screw, 4-24 X 3/4 (2)		Appelez-nous	-
30	625844		Thermostat		Appelez-nous	-
30	627180		Thermostat (alternate)		Appelez-nous	-
31	627134		Harness Wiring		Appelez-nous	-
33	625827		Support		Appelez-nous	-
34	627199		Screw, Shoulder		Appelez-nous	-
37	627003		Arm, Shut-off		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	625832		Spring, Shut-off Arm		Appelez-nous	-
40	227991		Nut, Wire		Appelez-nous	-
41	00627375		Ejector   (Replaces: 627375)			Immediately	$ 203.33
43	626069		Heater, Mold		Appelez-nous	-
44	625840		Stripper, Ice		Appelez-nous	-
50	488896		Screw, 8-16 X 3/8		Appelez-nous	-
51	626068		Mold & Heater Assembly (includes Illus. 43)		Appelez-nous	-
52	627132		Bearing & Inlet		Appelez-nous	-
55	877335		Repair Parts List		Appelez-nous	-
55	WP16123		Washer   (Replaces: 488292)				$ 8.16
55	941621		Instruction Booklet		Appelez-nous	-
55	488542		Screw, Ground		Appelez-nous	-
55	W11625904		Ice Cube Pan   (Replaces: 939529)				$ 67.83
55	837142		Trim, Pan		Appelez-nous	-
55	502037		Screw Grommet		Appelez-nous	-
55	WP681414		Screw, 10-12 X 3/8   (Replaces: 488644)			Immediately	$ 8.47
55	652604		Clip		Appelez-nous	-
55	627131		Adapter Plug		Appelez-nous	-
55	836490		Water Inlet Tube (straight)		Appelez-nous	-
55	836175		Water Inlet Tube (curved)		Appelez-nous	-
55	835649		Grommet, Inlet Tube		Appelez-nous	-
55	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488645)			Immediately	$ 8.40
55	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488649)				$ 22.22
55	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
55	WP488366		Tube Clamp, (2)   (Replaces: 488366)				$ 11.92
55	WP488878		Tube Clamp (1)   (Replaces: 488878)				$ 12.18
55	W10823511		Tube, Water   (Replaces: 836240)			Immediately	$ 32.41
55	WP627018		Nut & Sleeve   (Replaces: 627018)				$ 11.51
55	WP2158826		Dampener   (Replaces: 836074)				$ 1.82
55	510716		Tube Clamp		Appelez-nous	-
55	836200		Tube Assembly, Inlet Valve		Appelez-nous	-
55	537588		Nut, Inlet Valve		Appelez-nous	-
