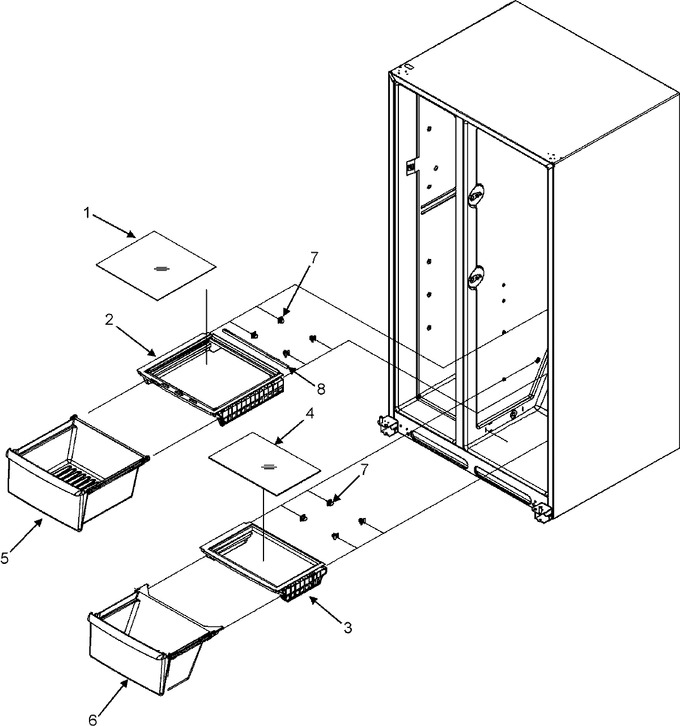

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004246		Glass, Crisper Shelf	50	Appelez-nous	-
2	WP67004531		Frame, Lg Crisper Shelf   (Replaces: 67004352)	50			$ 209.66
3	67004247		Frame, Meat Shelf	50	Appelez-nous	-
4	67004132		Glass, Meat Shelf	50	Appelez-nous	-
5	67004312		Pan, Lg Crisper	50	Appelez-nous	-
6	67004206		Pan, Meat	50	Appelez-nous	-
7	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	50			$ 10.31
8	67004249		Seal, Crisper Frame (rear)	50	Appelez-nous	-
