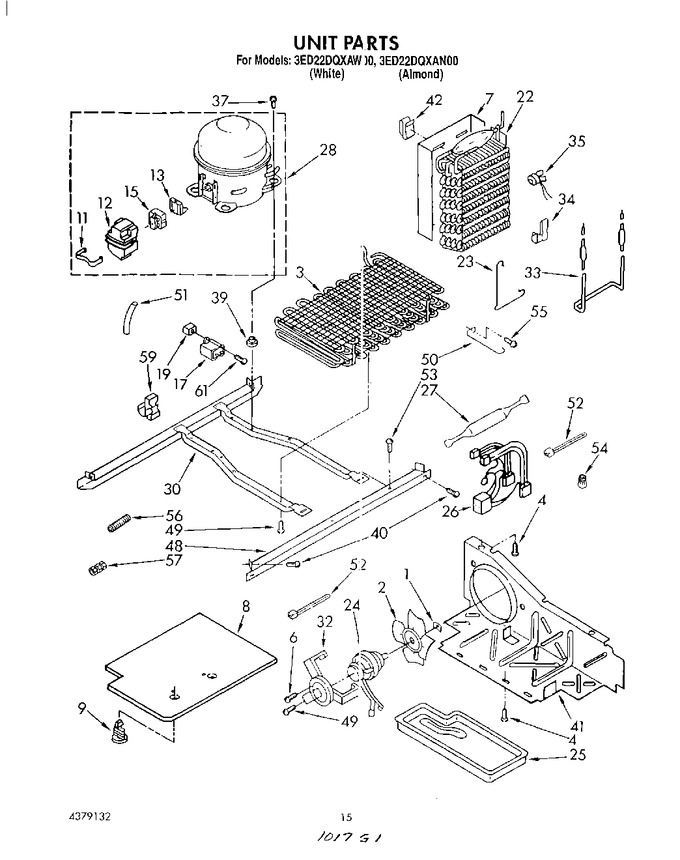

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2154010		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.83
6	681390		Screw   (Replaces: 489019)				$ 13.06
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	2160505		Cover, Unit Compartment		Appelez-nous	-
9	489396		Clip				$ 10.72
11	2154721		Strap		Appelez-nous	-
12	2154722		Cover		Appelez-nous	-
13	2158785		Overload (includes Relay)		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2154717		Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
22	WP2188822		Evaporator   (Replaces: 2155500)			Immediately	$ 339.85
23	2161324		Clip		Appelez-nous	-
24	2154976		Fan, Motor		Appelez-nous	-
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2167065		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2154002)			Immediately	$ 52.57
28	2154723		Compressor (includes Items 11, 12, 13, 15, & 17) (also Order)		Appelez-nous	-
28	876765		Tube Kit			Immediately	$ 86.33
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 233.03
32	2162062		Fan, Motor Bracket		Appelez-nous	-
33	2162213		Heater, Defrost		Appelez-nous	-
34	2161330		Clip, Heater		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	489387		Screw		Appelez-nous	-
39	2162067		Grommet (4)		Appelez-nous	-
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 40.58
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
52	WPW10339879		Strap   (Replaces: 2155774)				$ 7.90
53	WP489427		Screw   (Replaces: 489339)				$ 7.47
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489242)				$ 7.75
56	983659		Spring-tube		Appelez-nous	-
57	WP4211117		Union   (Replaces: 2150347)				$ 9.96
59	2155658		Clip, Wire And Water Tube		Appelez-nous	-
61	876764		Valve, Access(3/16``)			Immediately	$ 91.35
61	978028		Valve, Access (1/2)		Appelez-nous	-
61	978029		Valve Access (5/8``)				$ 93.85
61	978030		Valve, Access (3/4``)				$ 130.71
61	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.06
61	978026		Valve, Access (5/16``)			Immediately	$ 128.09
61	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
