SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

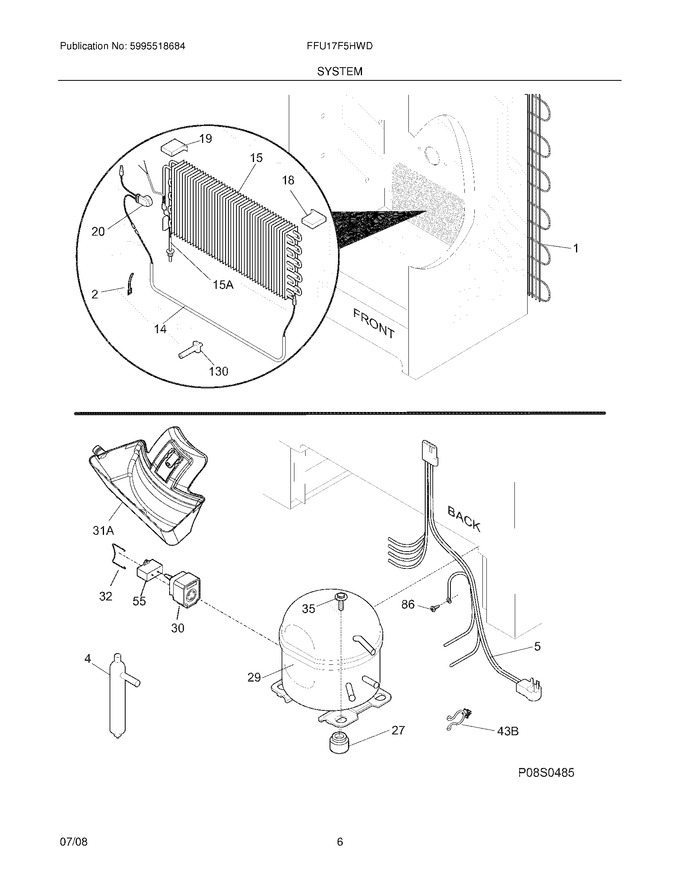

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 66.47
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 129.38
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 30.58
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 14.46
29	5304507766		Compressor,w/grommets ,w/o Electricals   (Replaces: 297223700)				$ 900.09
30	216954216		Controller,compressor				$ 51.92
32	216954300		Clip,controller				$ 18.90
35	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 83.06
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 15.17
130	297244700		Support,evaporator Mtg				$ 4.73
15A	297217900		Heat Exchanger,suct/cap Tube			Immediately	$ 102.02
31A	297231901		Pan-drain   (Replaces: 297231900)				$ 51.30
43B	297315800		Clip   (Replaces: 297048400)				$ 11.25
F1	5300083897		Condenser				$ 598.19
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 190.38
F5	297237600		Harness-main				$ 107.12
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 76.31
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 14.96
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor			Immediately	$ 88.36
NI	297102800		Spacer-tube		Appelez-nous	-
NI	216502500		Sleeve,suction Line				$ 12.05

    View Diagram in Separate Window       Print Part List
