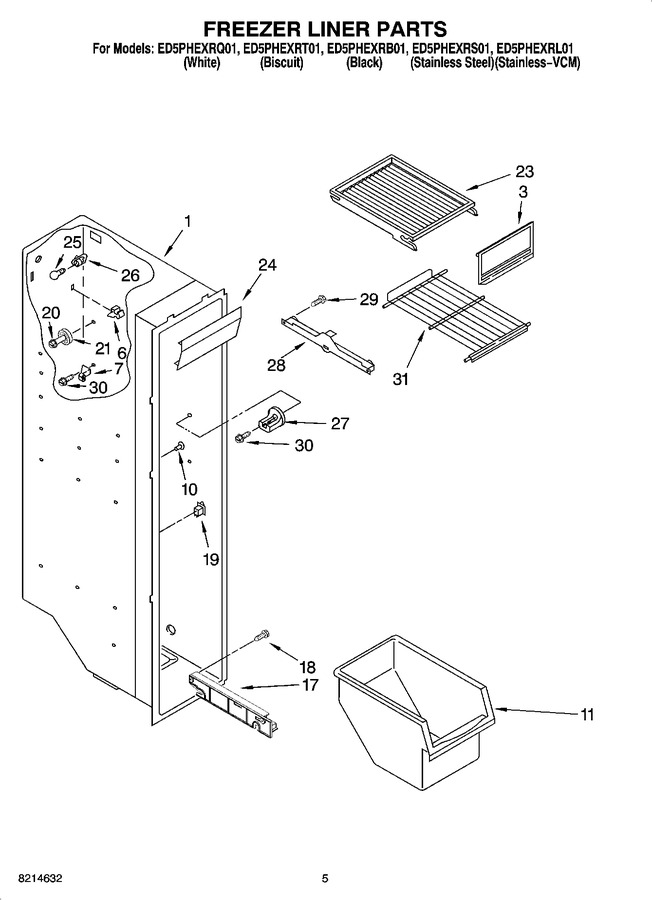

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
3	2204285K		Door, Ice Compartment		Appelez-nous	-
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud (4)		Appelez-nous	-
10	2176134		Grommet				$ 5.83
11	WP2182971		Basket, Fzr   (Replaces: 2182971)				$ 147.22
17	2261448		Slide, Basket (left Side)				$ 46.07
17	2261449		Slide, Basket (right Side)				$ 46.07
18	W10759522		Screw   (Replaces: 486298)				$ 8.24
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
20	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
23	2171714K		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Light Lens				$ 94.68
25	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
27	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
30	W10142289		Screw   (Replaces: 3400893)				$ 9.61
31	WP2174267		Shelf (1)   (Replaces: 2174267K)				$ 93.35
31	2174268K		Shelf (2)		Appelez-nous	-
