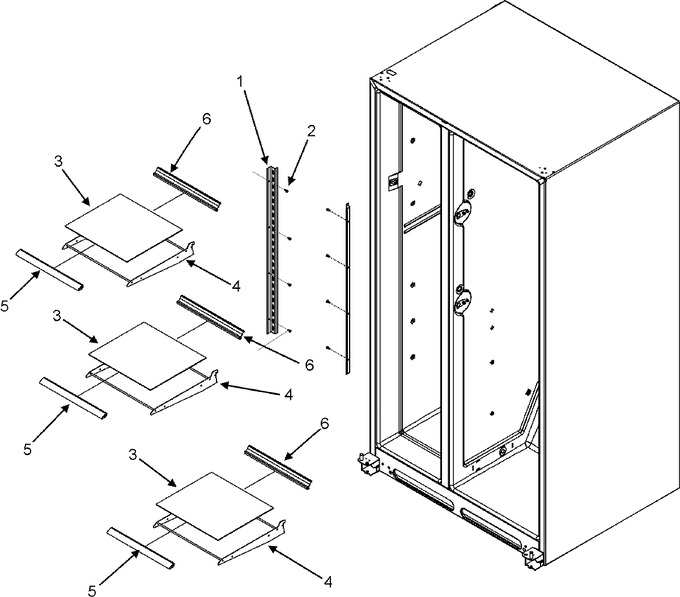

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67003840		Rail, L/r Lg Sxs	50	Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: 67006400)	50		Immediately	$ 7.30
3	67006106		Glass, Shelf	50	Appelez-nous	-
4	67006108		Frame, Shelf	50	Appelez-nous	-
5	67006107		Extr, Front Shelf	50	Appelez-nous	-
6	67006105		Extr, Rear Shelf	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
