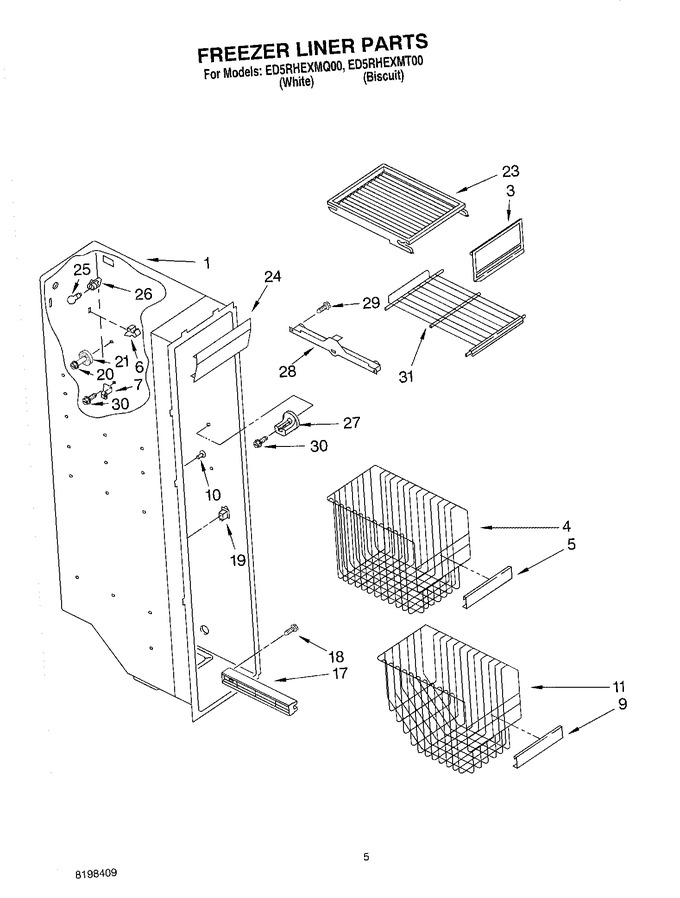

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
3	2204285		Door, Ice Compartment		Appelez-nous	-
4	2223539		Basket, Tall		Appelez-nous	-
5	2195905		Trim, Basket				$ 38.60
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	2196206		Support, Stud (4)		Appelez-nous	-
9	2195905		Trim, Basket				$ 38.60
10	2176134		Grommet				$ 5.83
11	2223535		Freezer Bin		Appelez-nous	-
17	2181760		Slide, Basket (right Side)		Appelez-nous	-
17	2181759		Slide, Basket (left Side)		Appelez-nous	-
18	W10759522		Screw   (Replaces: 486298)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
21	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
23	2171714		Shelf, Top Compartment		Appelez-nous	-
24	2171705		Light Lens				$ 94.68
25	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
26	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 110.16
27	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-
30	W10142289		Screw   (Replaces: 3400893)				$ 9.15
31	WP2174267		Shelf   (Replaces: 2174267)				$ 88.90

    View Diagram in Separate Window       Print Part List
