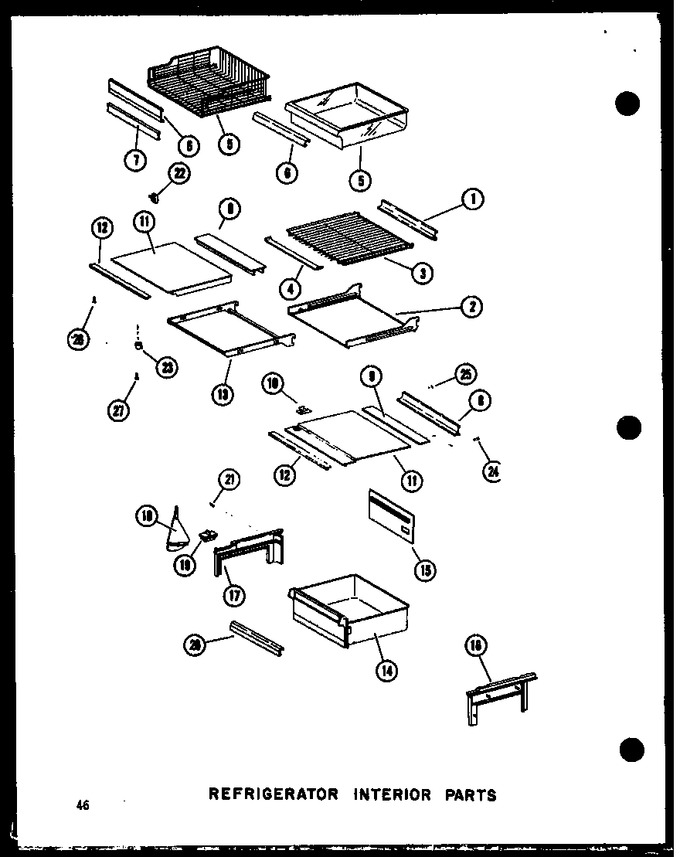

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C3622804 | Trim |
|
- | |||||
| 2 | D7102403 | Frame Cantilever Glide Shelf |
|
- | |||||
| 3 | D7102803 | Shelf, Fruit Bin |
|
- | |||||
| 4 | C3677301 | Trim K |
|
- | |||||
| 5 | D7102901 | Bin, Fruit |
|
- | |||||
| 6 | C3623003 | Trim |
|
- | |||||
| 8 | C3622701 | Trim Humidity Compartment |
|
- | |||||
| 9 | C3622303 | Ext-hc Top |
|
- | |||||
| 10 | C3623501 | Escutcheon |
|
- | |||||
| 11 | D7022201 | Top Assy |
|
- | |||||
| 12 | B0596603 | Trim |
|
- | |||||
| 14 | D7219801 | Pan, Humidity Compartment |
|
- | |||||
| 15 | C8705503 | Back-humidity Comp |
|
- | |||||
| 16 | D7201302 | Side, Humidity Compartment, R. |
|
- | |||||
| 17 | D7201202 | Rail Lh |
|
- | |||||
| 18 | C8705401 | Air Damper Cont K |
|
- | |||||
| 19 | B5632101 | Slide |
|
- | |||||
| 24 | M0211543 | Screw |
|
- | |||||
| 25 | M0211530 | Screw |
|
- | |||||
| 26 | M0230814 | Screw |
|
- | |||||
| 27 | M0213528 | Screw, No.8-32 X1/2 Nyl Hex Hd |
|
- |
